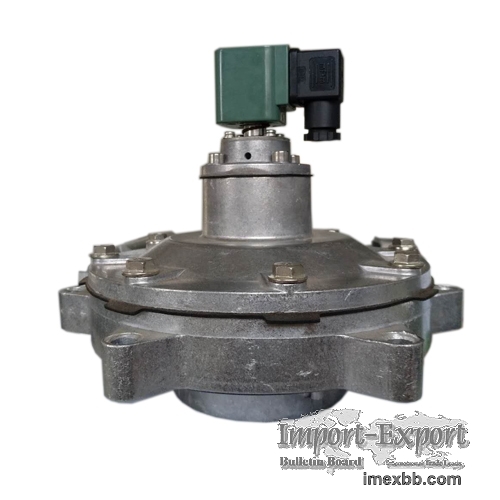

DMF-Z Right Angle Electromagnetic Pulse Valve

DMF-Z Right Angle Electromagnetic Pulse Valve Product introduction:
The electromagnetic pulse valve is imported from abroad (also known as the
diaphragm valve) is the compressed air "switch" of the pulse bag filter dust
cleaning system is controlled by the output signal of the pulse injection
controller, and the filter bag is cleaned by the row (chamber). Ash, so that
the dust collector's resistance is maintained within the set range, in order to
ensure that the dust collector processing capacity and vacuum efficiency.

DMF-Z Right Angle Electromagnetic Pulse Valve Features:
The DMF-Z electromagnetic pulse valve is a right-angle valve. The angle between
the inlet and outlet is 90°. It is suitable for the mounting connection
between the helium cylinder and the dust blower tube. The gas flow is
unobstructed, and it can provide the turbulent gas flow that meets the
requirements.

DMF-Z Right Angle Electromagnetic Pulse Valve working principle:
The diaphragm divides the electromagnetic pulse valve into two air chambers,
front and rear. When the compressed air is turned on, the compressed air enters
the rear air chamber through the throttle hole. At this time, the pressure of
the air chamber presses the diaphragm against the output of the valve. The
pulse valve is in the "closed" state.

The electric signal of the pulse injection controller causes the
electromagnetic pulse valve armature to move, the air chamber vent hole opens
after the valve, the rear chamber quickly loses pressure, the diaphragm moves
back, the compressed air is blown through the valve outlet, and the
electromagnetic pulse valve is "opened" status.

Pulse injection control instrument electrical signal disappeared,
electromagnetic pulse valve armature reset, after the air chamber vent hole
closed, the rear chamber pressure increased so that the diaphragm close to the
valve output, the electromagnetic pulse valve is in the "closed" state.

Hebei Ou Tai Environmental Protection Equipment Co., Ltd. Is a dust collection
system manufacturer. We use the advanced manufacturing equipment, extraordinary
manufacturing technology, and strict first-class assurance device beneath the
education of users to grant excellent industrial dust collection systems of our
products.

If you are looking for pulse valve manufacturers, Senotay can be a competitable
one among those diaphragm valve suppliers. Contact us to get more information
about our products!

Minimum Order: 1 sets
