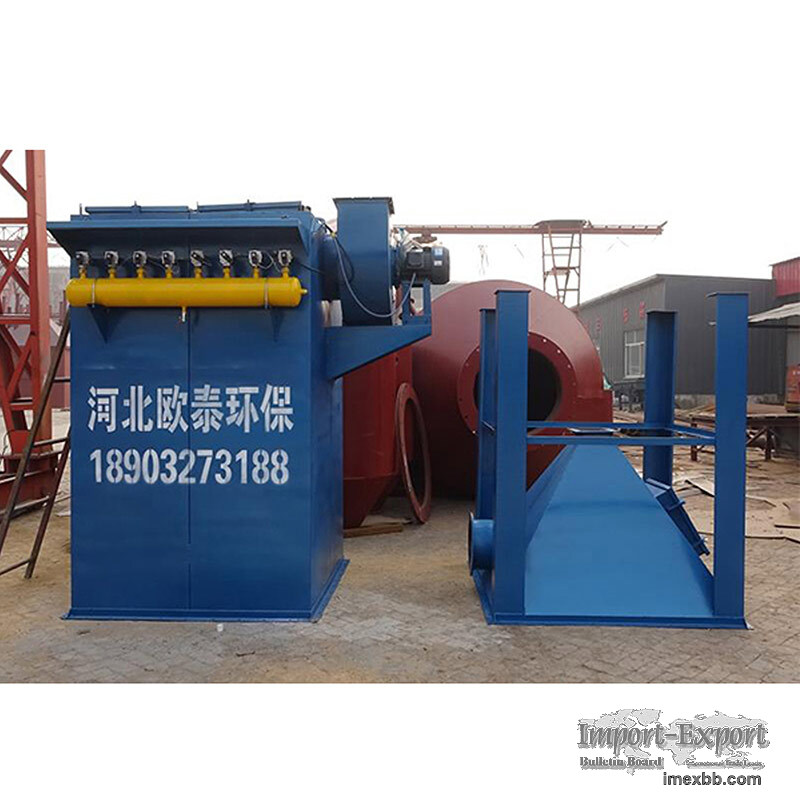

DMC Pulse Jet Single Bag Dust Collector

Single-pulse jet bag filter operation is widely used in mining, electric
furnace smelting, machinery manufacturing, chemical products, cement, building
materials, grain processing and other industrial and mining enterprises
warehouse top, bottom, belt transmission and local dust source dust. It has the
advantages of small size, large air volume, compact structure and easy use. The
structure is mainly composed of a fan, a box, an ash discharging device, a
control pulse jet bag filter system and the like. All of them are placed in a
box made of welded steel plates, baked and rust-proof, beautiful in appearance,
scientific in structure, and easy to operate. The lower flange of the unit is
directly coupled to dust collection equipment such as the top of the warehouse,
silo, and belt transportation to remove dust in situ, and the dust is directly
recovered.
DMC pulse jet dust collector working principle:
Dust-laden gas enters the box through the air inlet, and the purified gas
filtered by the filter bag is directly discharged by the fan. With the increase
of filtration time, more and more dust accumulates on the filter bag, which
increases the resistance of the filter bag, resulting in a gradual decrease in
the processing air volume. For normal operation, the filter bag must be cleaned
in order to control the resistance within a certain range. When the ash is
cleaned, each control valve is triggered by the pulse control device to open
the pulse valve. The compressed air in the airbag is injected into the filter
bag through the pulse valve to the holes of the injection pipe. The filter bag
instantaneously expands rapidly and the product is attached to the filter. The
dust on the surface of the bag falls off and the filter bag is regenerated.
Cleared dust falls and ash buckets are discharged through the drain valve. In
this way, the dust accumulated on the filter bag is periodically pulsed and
cleaned so that the purified gas passes normally.

If you have interest with it, we would tell the working principle of pulse jet
bag filter, bag filter working principle and bag filter working principle that
you want know.

Hebei Ou Tai Environmental Protection Equipment Co., Ltd. is a professional
dust collection system manufacturer. We provide Baghouse Filter, Electrostatic
Dust Collector and so on. Want to know more? Please contact us.

Minimum Order: 1 sets
