Disposable 5 Micron In-Line IV Filter With PES Membrane For Venous Access L

Product Description



In-line IV filters are commonly used in infusion administration of pediatric
patients and adult patients who need critical care. As a type of IV consumables,
the main purpose of the single-use filter device is to filter and retain
contaminants such as undissolved drug particles; precipitates; bacteria;
endotoxins; fragments of glass, plastic, or rubber; and large lipids in intravenous
(IV) drug solutions. Another crucial benefits is elimination of air from reaching
the systemic circulation to cause potential catastrophic effects in this patient
population. IV filter is an essential component of modern intravenous therapy and
play a vital role in protecting patients from serious infections and complications.

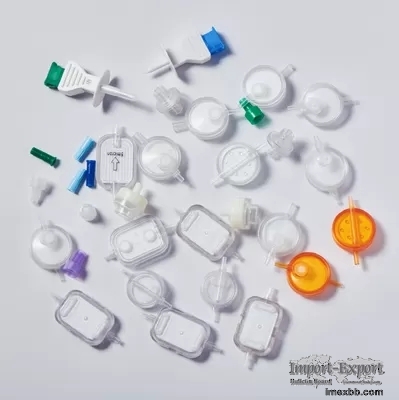

In-line IV Filters from XINNA, regardless of shapes and colors, consist of three
parts ------ naturally hydrophilic PES membrane as the main filter media for
filtration of intravenous drugs, inherently hydrophobic PTFE membrane for air and
bubble removing, and medical grade housing made of premium ABS material. And these
nonsterile filters are available in the following specifications,



Inline IV filters Item No. Details
GL00-026-500-Z0NY 5 μm Φ26mm filter diameter
GLBC-026-500-Z0NY 5 μm Φ26mm filter diameter light-proof
GL00-026-120-Z0YY 1.2 μm Φ26mm filter diameter with protective edging
GL00-026-500-Z0YY 5 μm Φ26mm filter diameter with protective edging
GL00-020-500-Z0YY 5 μm Φ20mm filter diameter
GL0L-033-500-F0YY 5 μm single-layer PES membrane rectangular housing
GL0L-033-022-X0YY 0.22 μm double-layer PES membrane rectangular housing



Features & Benefits

Auto-stop filter
Easy to connect to IV tubing sets with standard luer inlet and outlet slip
High retention efficiency
High throughput
High flow rate
Low level of extractables
Automatic air venting
Automatic air-stop
Protecting patients from infusion pain and potentially life-threatening impurities.


Packing and Shipping

In-Line IV Filters from XINNA are packaged and shipped in a way that will preserve
its best quality and use,

The filters are placed in a sealed plastic bag to protect it from moisture,
1000pcs/pack.
The filters are then securely packaged in a cardboard box with appropriate
cushioning materials, 4000pcs/carton.
The packaging are clearly marked with the words “In-Line IV Filter” ,
specifications, quantity and weight.
