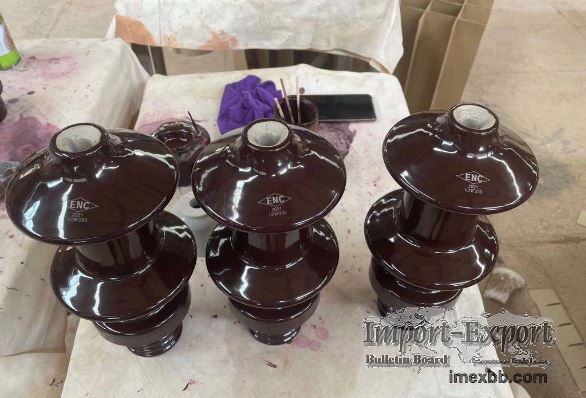

DIN42531 Standard DT-10NF250 Bushing Assembly Brown Color OEM Available

DIN42531 standard DT-10NF250 Bushing Assembly/ brown color/ OEM available



Description:



DIN 42531 Height(mm) Creepage distance (mm) Power frequency
withstand voltage(kV) Lightning impluse withstand voltage(kV) Weight(kg)
10NF250 295 305 28 75 3.2




The transformer sleeve is the main insulating device outside the transformer
box. The lead wire of the transformer winding must pass through the insulating
sleeve to insulate the lead wire between the lead wire and the lead wire
between the transformer shell, and to fix the lead wire at the same time.Due to
different voltage levels, the insulation sleeve has pure porcelain sleeves,
oil-filled sleeves and capacitive sleeves.





Features:



Insulator fittings , other than the suspension clamp ,which is physically in
contact with the aluminum conductor, shall be made of galvanized steel with the
exception of some critical items, such as the split pin of ball and socket
clevises, which shall be made of pressed steel.




Specifications:



1.Material:Electrical porcelain

2.Applied Standard: IEC,AS,BS,AN

3. Product can be Customized

Our bushing is applied for oil-immersed type transformer, enjoying good
reputation among clients from different countries.

Click to Enlarge
