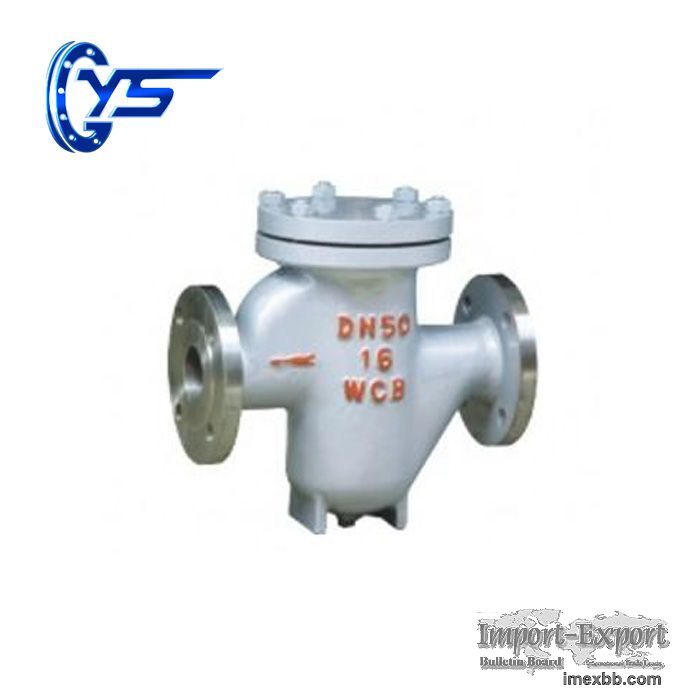

DIN U Type Strainer DIN Strainer DIN SERIES

DIN U Type Strainer DIN Strainer DIN SERIES DIN Valve Manufacturer
Medium temperature: ≤350 ℃
Medium: water, oil, air, steam
Caliber: DN10-100mm
Type: UG-A / UG-B
Body material: carbon steel, stainless steel
Connection method: flange
DIN SERIES Details
DIN U Type Strainer Material of main parts
Part Name material
Body / bonnet Carbon steel, stainless steel
Filter cover Carbon steel, stainless steel
Filter mesh stainless steel
Gasket Flexible graphite
DIN U Type Strainer performance specifications
model Nominal pressure
(mpa) Test pressure (mpa) proper temperature Applicable medium
Strength (water) Sealed (water)
PN16 1.60  2.40  1.76  ≤350 ℃ Water, oil, air, steam
PN25 2.50  3.75  2.75

DIN U Type Strainer dimensions and connection dimensions
model Nominal diameter
(mm) Dimensions
A L H
UG-A 10 150 80 125
15 150 80 125
20 180 100 153
25 180 100 153
40 200 155 304
50 300 155 340
65 340 220 380
80 400 250 420
100 500 295 502
150 600 335 650
200 786 395 770
model Nominal diameter
(mm) Dimensions
A H1 H2
UG-B 15 270 90 145
20 270 90 145
25 270 90 145
32 320 125 175
40 320 125 175
50 320 125 175
65 430 140 220
80 430 140 220
100 430 140 220
125 460 160 235
150 460 170 235
200 460 190 235

Our Flange Ball Valve’s materials mainly include WCB cast iron stainless
steel, etc. GOST, JIS, DIN, BS, ANSI gate valve, ball valve, globe valve,
butterfly valve are all our main product.
Click here to learn more about valves.
