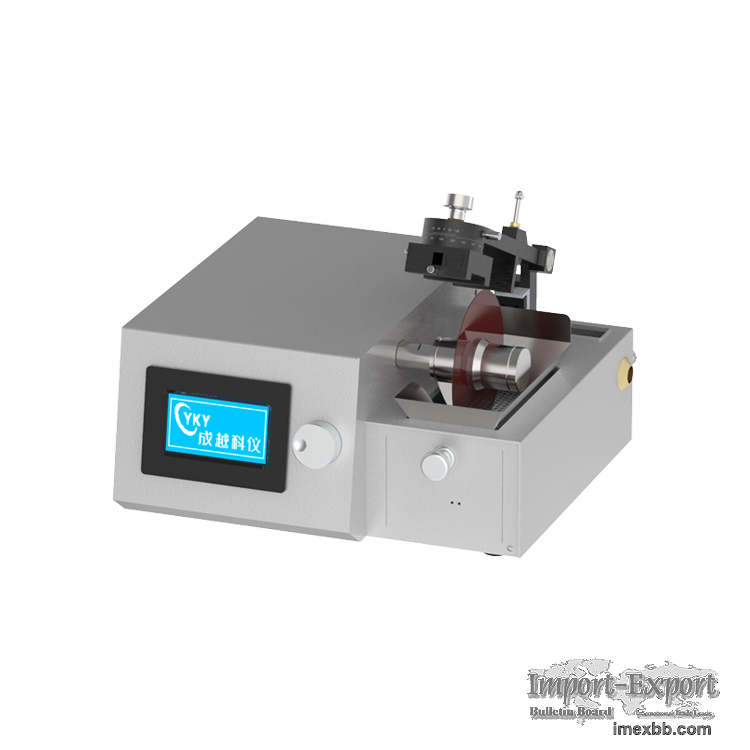

Digital Low Speed Diamond Saw with Three 4" Precision Blades

Digital Low Speed Diamond Saw with Three 4" Precision Blades & Complete Accessories
- CY-SYJ-150
CY-SYJ-150 is CE certified low-speed diamond cutting machine, which equips with the
advanced digital micrometer and digital speed display controller, it is the perfect
tool for cutting/dicing/slicing all kinds of materials up to 32.5 mm thickness,
especially for brittle crystals, ceramics, TEM samples, and even plastic samples.
Also this cutting machine can be used for cutting cylindrical cell for failure
analysis

Technical parameter of cutting machine
1. Model No. SYJ-150
2. Working voltage
AAC 110V/220V switchable for worldwide usage
110VDC Motor
8Amp fuse installed
3. Speed range 0~600rpm with LED Digital display
4. Cutting width&Depth
The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD
digital micrometer. The LCD micrometer is waterproof with a resolution of 0.001 mm
and accuracy of +/-0.003 mm.
32.5mm max. cutting depth (when using 35mm Dia. blade flange)
5. Diamond blades
Three blades are included for cutting various materials
SiC blade: 4" x 0.35 mm x 0.5" Arbor for cutting nonferrous metal materials, such
as superalloys.
Al2O3 blade: 4" x 0.35 mm x 0.5" Arbor for cutting ferrous metal materials, such as
iron and steel.
Full sintered diamond blade: 4" x 0.35 mm x 0.5" arbor for cutting crystal,
ceramic, and plastic materials
6. Sample Holder & Mini-vise
Two angles adjustable sample holder is included, please click picture below for the
details (max. opening 26mm)
One Mini-vise is included, which can be easily adapted onto the sample holder to
clamp rod shape specimens with a diameter up to 1'' max.
7. Package Dimensions 19"(L) x 15"(W) x 15"(H)
8. Shipping Weight & Dimension 32 lbs, 18" x 14" x 14"
9. Certification CE Certified.NRTL or CSA certificatin is available  upon
request

Minimum Order: 1 sets
