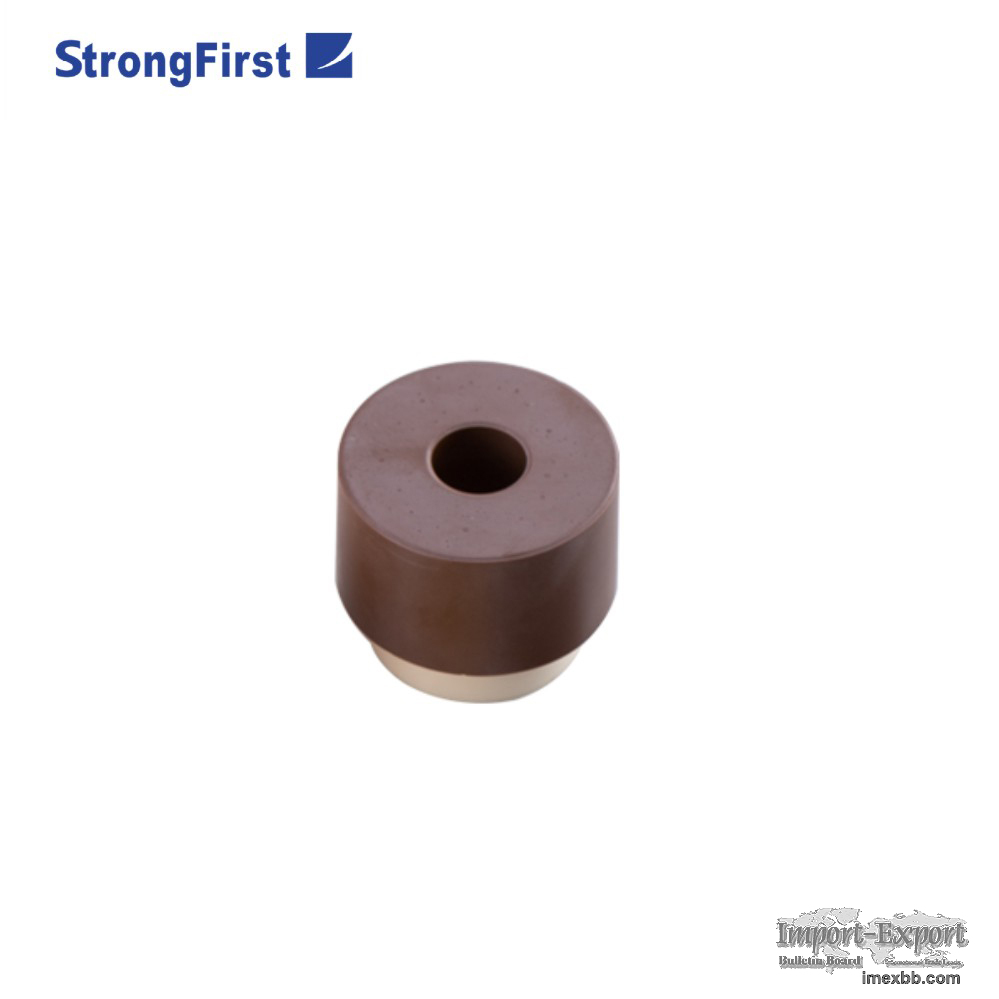

Dielectric Resonator components include three different modes, such as TEM
mode, TE mode, and TM mode. They are not only have advantageous of high Q
value, serialization of temperature coefficient, and serialization of
dielectric constant; but also, with design flexibility for customization.
Because of these advantages, dielectric resonator elements are commonly
designed for LNB, Doppler response, base stations, and Repeaters....
StrongFirst Dielectric Resonator Reduces the size of microwave devices. Low
loss and high dielectric constant.
1. High purity, high density ceramics minimize wastage.

2. High dielectric constant makes possible the miniaturization of microwave
circuits. Temperature-compensated dielectric constant enables stable microwave
oscillators.

3. The high purity and smooth surface of the ceramics make them ideal for MIC
applications.

4.Various shapes are available to meet the needs of a custom application.
• Satellite antenna (BS/CS Converters)

• Burglar alarms

• Multichannel microwave communication system
• Radar systems

• Speed guns

• Mobile phone systems

• CATV converters

• Measuring equipment
dielectric resonator manufacturer:StrongFirst
The microwaves are confined inside the resonator material by the abrupt change
in permittivity at the surface, and bounce back and forth between the sides. At
certain frequencies, the resonant frequencies, the microwaves form standing
waves in the resonator, oscillating with large amplitudes.
PART NO. SYSTEM:Dielectric Resonator(TE01 Mode Higher Freq.Dielectric
Resonator)
S DR XXXXX X XXX X X /XX XXX
1 2 3 4 5 6 7 8 9

No.EXPLANATION:
1 STRONG Brand Marking
2 Dielectric Resonator
3 ResonantFrequency:MHZ
4 (Mode:Stepped)B.C.D: B（Step with support)C（RING)D（DISK)
5 Outer Diameter:mm
6 Relative Dielectric Constant(D F I)
7 Temperature Coefficient(1,2,5,10): 1.(T.C.):1+/-1 ppm/C. 2.(T.C.):2+/-1
ppm/C. 5.(T.C.):5+/-1 ppm/C.10.(T.C.):10+/-1 ppm/C.
8 Support Height:mm

Minimum Order: 1000 pieces
