Die Sinking EDM / Sinker EDM Machine From Sanxing Machinery

Die Sinking EDM / Sinker EDM Machine is used for cavity forming. It utilizes
conductive material (copper, graphite, steel) as electrode to process workpiece
(conductive material) by spark erosion. ZNC EDM Sinker has X and Y-axis manual
control, and Z-axis automatic control. It can do one single job after manually set
position, and job setting is also manual. Ideal for molds and spare parts
manufacturing industries, ZNC die sinking EDM machine for sale by Sanxing
Machinery is your best choice for die sinking operation!

Sanxing Machinery Sinker EDM Machine ZNC350 is featured in strong functions,
convenient and reliable operation, of fairly good rigidity, running placidly, of
good controllability, suitable to process conductive metal moulds, complicated
metal parts and templates with high precision, high toughness and difficult
processing. EDM process has become the important part in the field of mechanical
manufacture. They are widely used in the fields of moulds, electronic instruments,
precision mechanical process, automobile parts, military, etc.

FEATURES OF SINKER EDM MACHINE – ZNC350
A. Taiwan C-Tek Controller
B. Three axes DROs
C. High accuracy X, Y, Z three axes C3 grade Taiwan-made ball screw
D. Servo Motor for Z-Axis
E. Max. Working Current: 50A/60A
F. Surface Finishing:Ra 0.2~0.8um

TECHNICAL DATA OF SINKER EDM MACHINE – ZNC350
Mechanical specifications Unit ZNC350
Table size(length x width) mm 600×320
Working slot (XxYxZ) mm 1080x580x350
Maximum oil level (from table) mm 240
Longitudinal travel mm 350
Lateral travel mm 250
Vertical travel Spindle mm 180
Auxiliary travel mm 200
Maximum distance from worktable to electrode head mm 350
Maximum electrode Weight KGS 50
Maximum workpiece Weight KGS 700
Machine weight KGS 1400
Packing Size mm 1460x1490x2230
SINKER EDM MACHINE – ZNC TYPESpec of Sinker EDM Machine / Die Sinking EDM Machine
- Sanxing machinery
OPTIONAL
1. Model: From ZNC350 To ZNC700
2. Magnetic Worktable Optional
3. Orbital Head Optional
4. Different Working Current Optional

DELIVERY TIME
15 days after order confirmation
WARRANTY
One year
During warranty period, we can provide free parts and components that are not
damaged due to improper operation (consumables are excluded). Out of warranty
period, we will supply our best service to you as usual, if you have any question.

1. Offer technical support online service.
2. Technical files service & on-site training service provided.
3. Offer machine operation video.
4. Spare parts replacement and repair service provided.
5. All questions will be replied within 24 hours.

FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of cnc wire cut edm machine, which have
been in the industry around 30 years.

Q: Can you provide training and maintenance?
A: Yes. In order to make your production more efficient, before the delivery, you
can send someone to my company for free professional operation training.

Q: What information will you need to make the proposal?
A: Worktable size, worktable travel, surface finish, machining accuracy, and your
special requirement.

Minimum Order: 1 sets

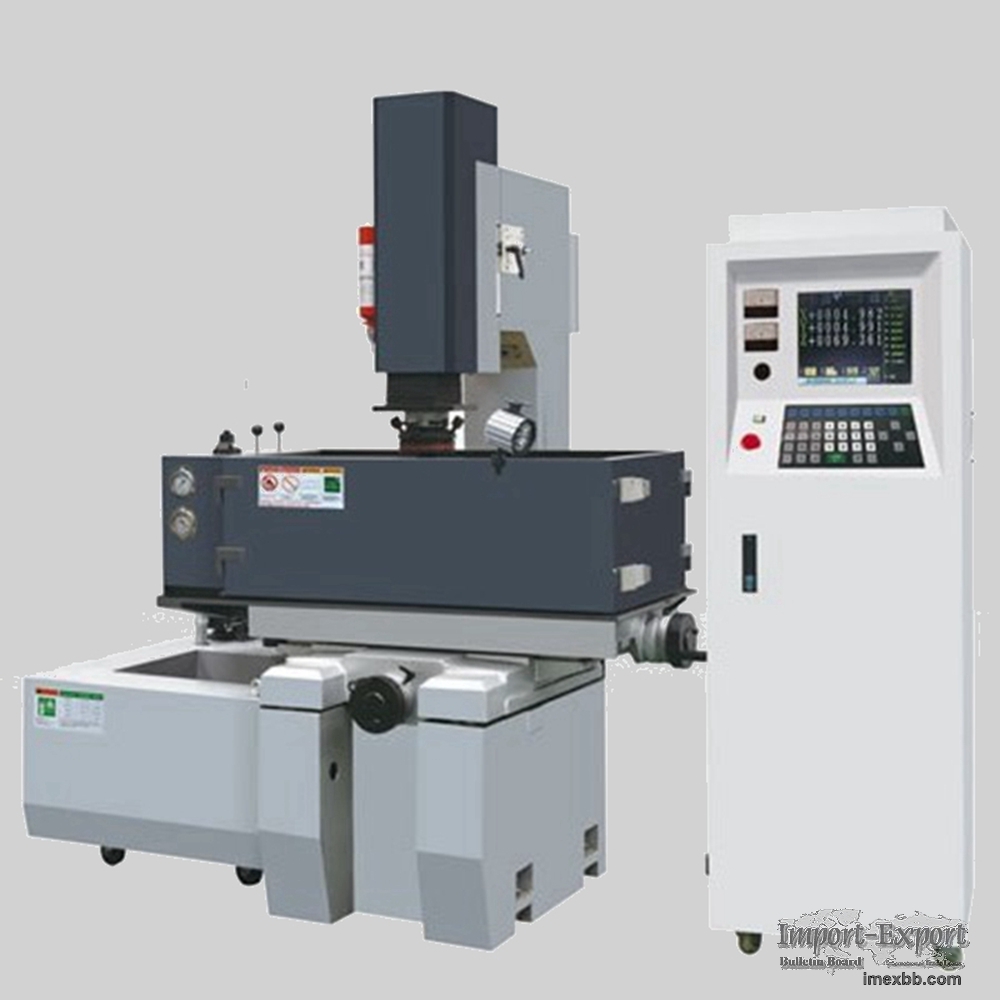

Die Sinking EDM / Sinker EDM Machine From Sanxing Machinery
