DH20Pro Handheld Spot Welding Machine With Quick Release Pen

DH20Pro Spot Welder Handheld, Portable Mini Spot Welding Machine With Quick
Release Pen Nickel Plate, 18650 Battery Spot Welder for Phone Repair Tool.

5000W Power Spot Welding Machine
Spot welding thickness: 0.1-0.12-0.15-0.2mm Small volume,high power.
The thickness of spot welding is the thickness of nickel plating, and the
unit is mm
The solder pins can be completely removed and replaced.

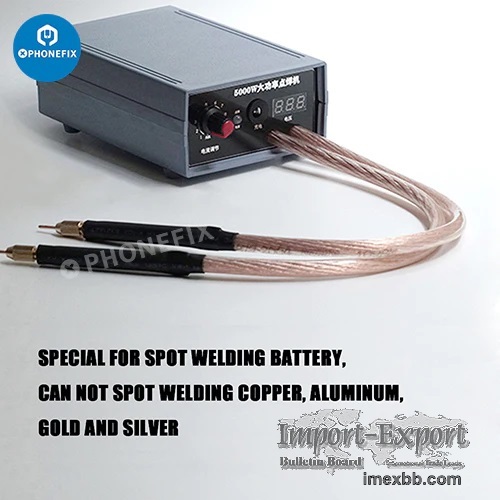

Spot welding machine can be used for spot welding 18650 lithium battery
connecting nickel strips, or iron or stainless steel sheets, copper and
aluminum cannot be spot welded.
Rechargeable spot welding machine, can weld thousands of welding spots after
being fully charged.
The current is adjustable, easy to use, and the solder joints are beautiful
and firm
Foot switch controls welding, spot welding is more arbitrary.

Instructions:
Turn on and adjust the corresponding position according to the thickness of
the following nickel belt: (1). Adjust to 5 position when spot welding 0.1mm;
(2). Adjust to 6 position when spot welding 0.15mm; (3). Adjust to 8 position
when spot welding 0.2mm.
If the current is ad used too high or too small, ;it will affect the spot
welding effect
When the top of the soldering pin becomes black,sand it with fine sandpaper.
Press the nickel belt with two soldering pens and step on the foot switch.
Wait for about 0.5 seconds for output spot welding, then release the foot
switch.
Do not use voltage below 7.3V,please charge in time.

Minimum Order: 1 pieces
