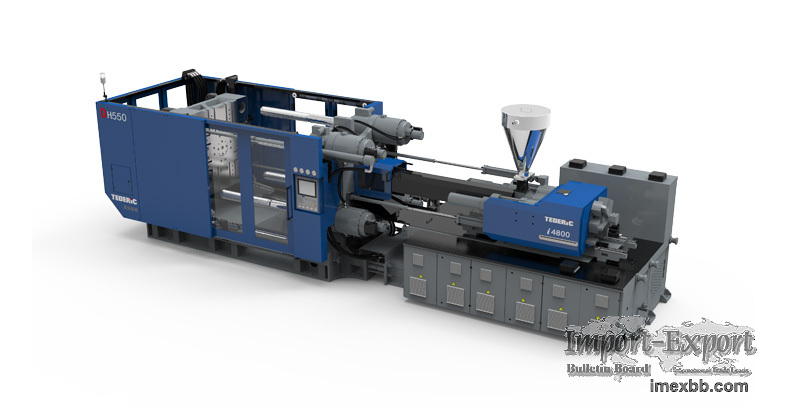

DH-i Two-platen Injection Molding Machine

Introduction
DH full hydraulic series injection molding machine is of two-platen, dual
cylinder injection unit and clamping force from 480 – 7000 tons. Its
modularized design, free match-up of clamping and injection units can cater to
customer needs, and also reduce floor area occupation and costs. The super
efficiency servo IMM is being energy saving and environmentally friendly, and
configured with sensitive servo driving system to give quick response. With
customizable super large mold thickness and opening stroke, the machine models
are especially suitable for deep-cavity plastic products of sizable mold
thickness demand.

Commonly injection molding machines are toggle type, also called toggle type
injection molding machine, with a front, middle and back platen, but two-platen
injection unit of injection molding machine goes by straight clamping, with
only front and back platen. The mold opening force of two platen injection
molding machine is comparatively large, which makes it easy to process products
of deep cavity, big material volume and complex shape, with even higher mold
clamping accuracy. Besides, two platen injection molding machine can realize
the independent closed-loop control of high-pressure hydraulic clamping
cylinders through the development of special structure and control software. In
the global market, China's biggest injection moulding machine technology
currently holds the lead position.

Design Highlights：
Extra Mold Thickness Clamping Force
Big Mold-bearing Capacity
Synchronous braking structure
Modularized Design
Clamping tie-bar piston structure
Feature：
High precision: quick response of clamping force, repeatability precision of
molding opening position within ± 0.5 mm and of injection position within ±
0.5 mm.

Stable and energy-saving: leading servo dynamic system deployed, 30ms high
response and save 30%~80% energy compared to the traditional hydraulic system

Flexible: can be applied to varying types of molds.
We have hydraulic clamping injection molding machine for sale, If you need,
please contact us in time.
Tederic Machinery Co., LTD operates as an world-renowned plastic injection
molding machine manufacturer and solutions provider. The company is renowned
amongst customers for its excellent product performance , satisfactory
technical support and after sales service.

Tederic Machinery co., LTD was founded in 2003, having two main factories in
China currently，one is Tederic headquarters and one is tederic injection
molding machine factory, which are located in Hangzhou City and Huzhou City
respectively. The total plant area are 120,000 square meters and the total
number of employees is more than 800. We praise the concept of innovation and
implements which by spirit of improving every day. After 16 years of continuous
development and putting efforts, Tederic has become one of the top three
enterprises in China's injection molding machine industry in terms of
comprehensive strength. In 2017, Tederic machinery co., LTD was listed on the
main board of the Shanghai stock exchange (SH603289), and it is also the first
injection molding machine company listed on the main board of China.

Tederic Machinery Co., LTD operates as an world-renowned plastic injection
molding machine manufacturer and solutions provider. We provide injection
moulding machine, plastic moulding machine,tederic injection molding machine
and etc. Want to know more? Please contact us.

Minimum Order: 1 sets
