DGWX7-Front Drive Motor

Suzhou Shengyi Motor Co, Ltd was established in 2003, a leading hub motor
manufacturer specialized in theesearch, development, production, sales and
service of the electric bicycle motor. The products are popular all over the
world.

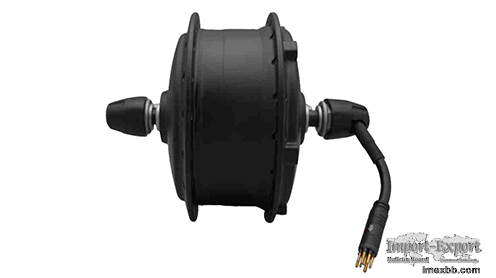

High speed brushless 250 watt front hub motor, wheel size 16in~28in, rated
power 250W~300W.

Main parameter of DGWX7-Front Drive Motor
specification parameter
Driving position Front
Wheel size 16in-28in
Spoke 36holes 12G/13G
Rated power 250W
Rated voltage 24V~36V~48V
Max.torque ≥40N.m
Efficiency ≥80％
Cable side Right
Number of magnet 16/20
Reduction gear ratio 0.000744213
Installation dimension 100mm
Inside speed sensor 1~6
Hall sensor With/Without
Brake V-brake
Classification of waterproof IPX5
Weight 3.4Kg

Minimum Order: 1 pieces
