DG Series Filter Press Feed Pump

DG Series Filter Press Feed Pump
Product Description
- Single stage, single suction, horizontal centrifugal pump
- Wet parts such as casing, impeller, liner plate in anti-abrasion high chrome
cast iron alloy.
- Horizontal-central-split container bracket easy for maintaining
- Packing or mechanical seal
- Protective shell surrounding the casing ideal for heavy duty
- Hydraulic optimization design for pressure filter, high-efficient, energy-
saving and stable operation
Technical Specifications
Performance and Main Technical Datas of DG Single-Case Pumps(1)
Type Allowable
max.power of
ass.motor(kW) Clear water performance Particle max.
Size handled
occasionally
(mm) Pump weight
(kg)
Q
Capacity
(m3/h) H
Head
(m) n
Speed
(r/min) Max.eff.
(%) (NPSH)r
(m)
150DG-A50 55 62-279 9.3-44.6 490-980 65.7 2.1 30
1470
100DG-B45C 90 53-233 13.1-66.6 700-1480 53.6 3.6
26 1290
100DG-B38CS 90 40-171 18.5-94.1 700-1480 58.7 3.4
18 1420

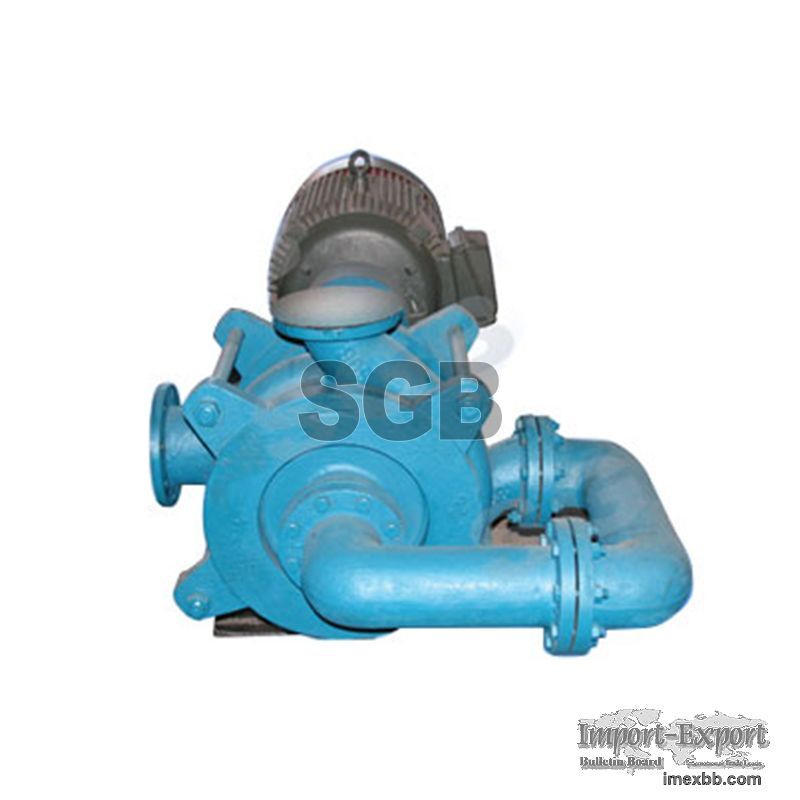

DG Series Filter Press Feed Pump
Enlarge Click to Enlarge
