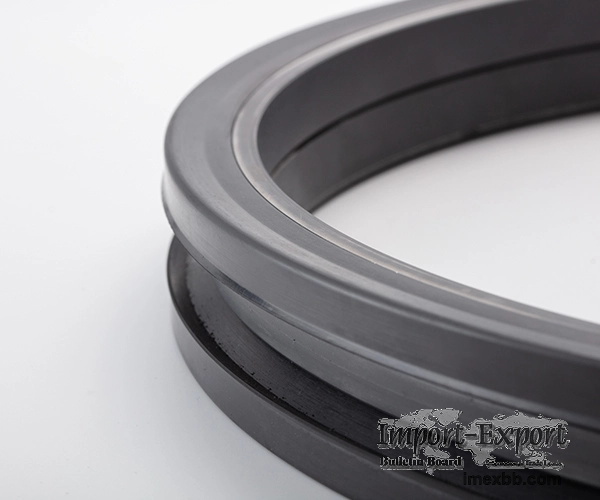

DF Floating Seal

Heavy Duty seal consists of two separate metal seal rings and two square o-
rings that provide elastic compression within housing bores and it also called
square bore face seal, HDDF.

Fuyote available heavy duty seals sizes: 59~800mm

Metal Seal Ring Material: Fuyote's metal seal rings are manufactured of high
alloy cast iron. Fuyote offers two kinds of material for seal rings.

Elastomer components material defines its temperatures and pressure. Fuyote
offers three kinds of materials for o-rings: NBR, HNBR, and Silicone.

Advantages of metal face seals: easy to process housing bores and highly
sealing reliability.

Primary Applications: off-road and tracked vehicles, conveyors and construction
equipment, agricultural machinery and mining equipment.

Two metal sealing rings interact to create a sealing surface that is
perpendicular to the axis. O-rings transfer pressure from the housing to these
sealing rings, enabling one of the metal sealing rings to rotate with the
housing while the other remains stationary. This results in relative motion
between the two mechanical face seals.

The movement between these two face seals generates an oil film on the contact
surface. This oil film is essential for effective sealing. As the parts rotate,
the contacting surfaces form a contact band that typically ranges from 0.008
inches (0.2mm) to 0.02 inches (0.5mm) in width. This contact band retains the
oil lubricant and resists the intrusion of foreign materials. Over time, as
wear occurs, the contact band may shift inward. However, the elasticity of the
O-ring compensates for this movement, ensuring that the mechanical face seals
maintain their precise position and stability.

Key advantages of these seals include their resistance to wear and corrosion,
resulting in a long service life and maintenance-free operation. They also
exhibit exceptional sealing capabilities, effectively protecting against
external contaminants like abrasive substances, moisture, chemicals, oil, and
grease. Furthermore, these seals are self-centering, which helps compensate for
shaft eccentricity or misalignment. Additionally, the presence of oil between
the seal faces enables them to lubricate and cool, allowing for higher
rotational speeds.

For more information about a1205g2581 and face seals, please feel free to
contact us!

Minimum Order: 1 pieces
