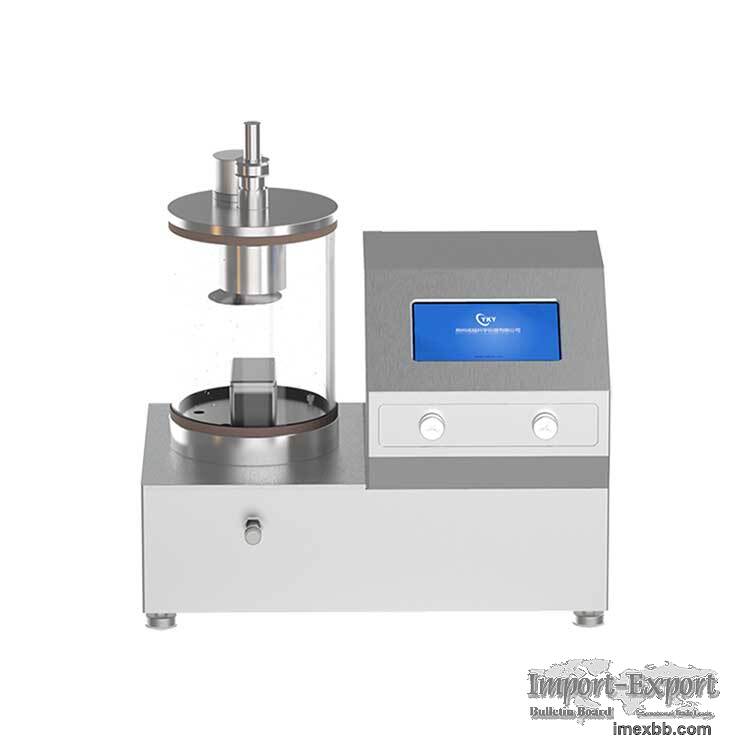

desktop magnetron sputtering coater with reciprocating sample table

Compared with similar vacuum PVD plasma sputtering equipment, this single-target
magnetron sputtering coating instrument is compact in design, highly integrated,
compact, and can be placed on a table for use. It is an ideal equipment for
preparing material films in the laboratory，our machine can be used to prepare
single-layer ferroelectric films, conductive films, alloy films, etc.

Main parts
1. The magnetron target can be selected from 1 inch and 2 inches, and customers can
choose according to the size of the substrate to be plated;
2. the power supply is 150W DC power supply, which can be used for metal sputtering
coating.
3. equipped with a vent interface, which can be filled with protective gas. If the
customer needs to mix gas, you can contact the staff to configure a high-precision
mass flow meter to meet the needs of the experiment.
4. equipped with advanced turbo molecular pump set, the ultimate vacuum can reach
1.0E-5Pa, and other types of molecular pumps are also available for purchase.

Minimum Order: 1 sets
