Desalination Process and Advanced Filtration Solutions

Desalination is critical for converting seawater into potable water,
especially in regions facing scarcity of freshwater. This process involves
several crucial steps to ensure clean water's efficient and safe production.

Desalination Process and Advanced Filtration Solutions

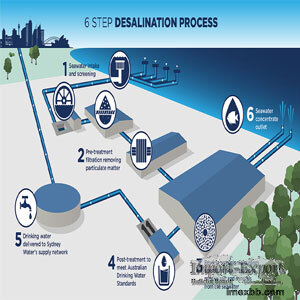

Here’s a detailed breakdown of the key stages in the desalination process:


1. Seawater Intake:
Seawater is drawn into the desalination plant through four strategically
placed caged intake screen pipes on the seabed. These intake screens are
designed to allow marine life to escape, preventing them from being drawn
into the plant.

2. Screening and Pre-treatment Filtration:
The initial filtration stage involves drum screens that remove large debris,
such as man-made rubbish, shells, and plant matter. This pre-treatment is
essential for protecting downstream equipment and ensuring efficient
operation.

3. Reverse Osmosis:
The pre-treated seawater then passes through reverse osmosis (RO) membranes,
which effectively remove salts and other minerals. The byproduct of this
process is a concentrated brine, which is safely returned to the ocean.

4. Post-treatment:
The desalinated water undergoes post-treatment to re-mineralize it, followed
by fluoridation and chlorination to ensure it meets drinking water
standards.

5. Water Supply:
The treated water is then distributed to homes and businesses through a
network of pipes, ensuring a reliable supply of clean water.

6. Seawater Concentrate Disposal:
Approximately 58% of the water used in desalination is returned to the ocean
as seawater concentrate. This brine is discharged through an outlet tunnel
equipped with specially designed nozzles that ensure rapid mixing,
minimizing environmental impact.



Filtration Solutions in Desalination


Effective pre-filtration is crucial for the smooth operation of desalination
plants. The variability in soilage loads can complicate this step, making
reliable filtration solutions essential. Advanced self-cleaning filtration
systems, particularly those using wedge wire screen filter elements, offer
significant advantages over conventional methods. These systems provide
optimized space utilization and minimal operating costs, ensuring continuous
and efficient operation of the RO membranes.



Common Types of Strainers in Water Treatment Plants


Several types of strainers are commonly used in water treatment to remove
contaminants and protect downstream equipment:

1. Basket Strainers: Ideal for removing large debris, these strainers are
suitable for applications where contaminants are relatively coarse.

Basket Filter Strainers

2. Water Intake Screens: Designed to protect aquatic life, these screens
ensure compliance with fish protection regulations.

wedg wire water intake screen

3. Duplex Strainers: These allow for continuous operation, as one strainer
can be cleaned while the other is in use.

Basket Strainers housing

4. Self-Cleaning Strainers: These offer minimal maintenance and downtime,
making them ideal for applications with high contamination loads.

Self-Cleaning Strainers housing

5. Temporary Strainers: Used for short-term filtration needs, these
strainers can be removed once the system is free of debris.

Temporary Strainers

6. Backwash Filter Systems

Backwash filter systems are essential in environments with heavy growth of
algae, mussels, and other marine organisms. These systems use air blasts to
prevent fouling and can be enhanced with small amounts of chlorine to
further reduce the risk of blockage.



The effectiveness of a water treatment system hinges on the quality of its
filtration techniques. Consulting with a filtration specialist can help
determine the best strainer for each application, ensuring optimal
performance and longevity. For any water treatment requirements, feel free
to contact us.
