Demister Pads

DEMISTER PADS -DEMISTER KNITTED MESH
We supply full range of Demister Pads fabricated in plastic and metal wire
knitted mesh materials to suit all kinds of projects applications. Demister
Pads are porous mesh blankets designed and constructed to efficiently abate
mist particles. All demisters are delivered with Product Conditions of Genuine
original, brand new, warranted, certificated ( Manufacturer's standard
certificate).



Materials of demister pads and how to choose:

Major materials cover stainless steel, nickel alloy ( monel), aluminum, pp, pe,
frp, Teflon, pvc, polyester, and various alloy.

Mist eliminator demister pads shall be chosen based on the operating
conditions, such as: gas volume, Temperature, Pressure, droplets/mist to be
captured, Type of industry applied.

Metallic Materials Choosing:

The work temperature of non-metallic series varies from PP, PE, PVC, PVDF and
ECTFE.
316 ss mesh demister pads can work in a higher temperature environment compared
with SS 304.
Aluminum knitted mesh offers a different property compared with stainless
steel.
Monel demister is made of nickel-copper alloy with high tensile strength and
resistance to corrosion caused by many agressive agents. Suitable for marince
uses.
Non-Metal Material Choosing and Work Temperature Standard:
PP: 0°C up to 80°C
PE: - 20°C up to 60°C
PVC: 0°C up to 60°C
PVDF: - 20°C up to 120°C
PVC-C: - 20°C up to 120°C
ECTFE: - 20°C up to 150°C

Demister choosing according to end uses, structures, shapes:
Vane type

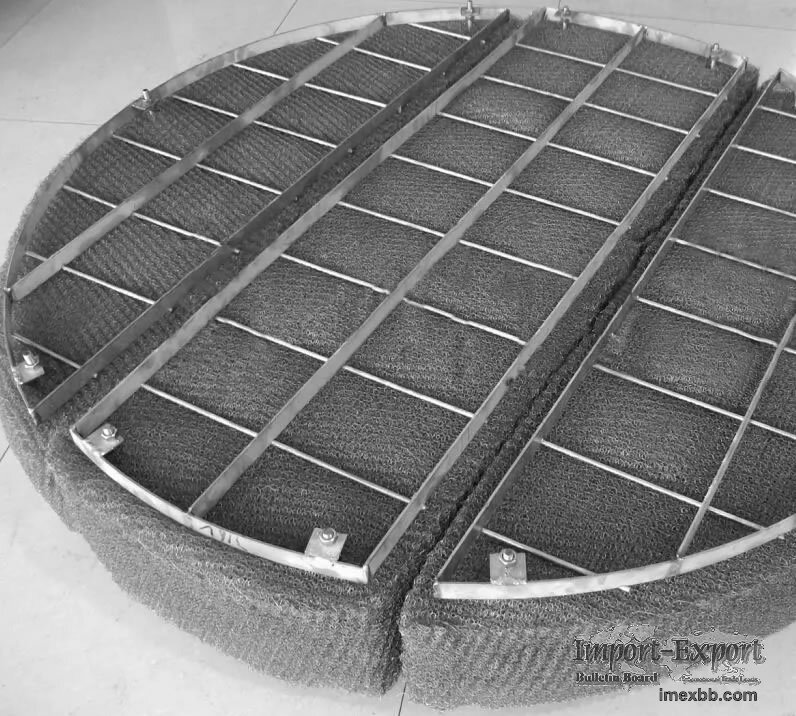

Pad with grid
Demister pads in 2 segments, 3 segments, 6 segments, 8 segments and other
options.
Square pad, circular pad
Demister pads for knockout drums
Demister pads mufflers, breathers, sleeves, etc.

Demister Mesh Equal to York 431, York 421, York 422, , 326, 333, 371, 483, 241,
mist eliminators

York 421 Pad Demister is mainly used in distillation and evaporation of
petroleum, chemical, medicine, metallurgy, aerospace, ship, environmental
protection.
York 422 Mist Eliminator Demister Pads are made in varied degrees of density
with 99.99% Efficiency.



Polypropylene (PP) Wire Mesh Pads Demister
Polypropylene (pp) wire mesh pads demister for sulfuric acid plant
Product Description:
Material style: PP knit fabrics
Dimensions : 30000*2500*20 mm
For temperture up to 100°c
Hardeness : 72 d
Thermal conductivity : 0.22 w/mk
Elongation to break : 70%

Sulfuric Acid Process Flow Diagram

Click to Enlarge
