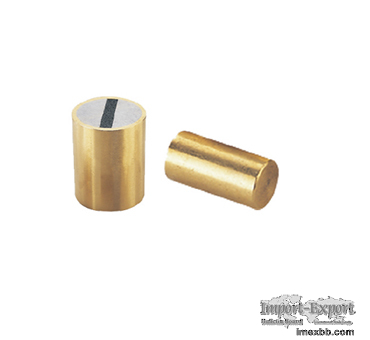

Deep Pot Magnets

A deep pot magnet is a type of pot magnet. The magnet is housed in a
cylindrical housing, usually made of galvanized steel or copper-zinc alloy and
brass. The deep pot magnets can be glued in, pressed in, or shrunk in.

Types of Deep Pot Magnets
Deep Pot Magnets SWN0
Deep Pot Magnets SWA1
Deep Pot Magnets SWA3
Deep Pot Magnets SWNP

The magnetic core of the deep pot magnets
The cores of deep pot magnets are made of neodymium (NdFeB), samarium cobalt
(SmCo) or aluminum-nickel-cobalt (Alnico) alloys. Depending on the material
used, deep basin magnets have different bonding forces and respond differently
to high-temperature requirements.

● Although, Alnico magnets have a good suction force, NdFeB magnets have the
strongest suction force. SmCo falls between the other two magnet systems.

● With regard to temperature resistance, the opposite is true. Alnico magnets
tolerate the most heat and NdFeB magnets are the least heat resistant. Magnets
reach the following maximum operating temperatures: NdFeB 80°C / SmCo 250°C /
Alnico 450°C.

What do you have to pay attention to when installing deep pot magnets?
When installing a deep pot magnet -- it does not matter whether the housing is
galvanized or made of brass, but it is important to ensure that it is not
directly surrounded by iron. Iron reduces the suction power by 15%. So a gap of
a few millimeters between the casing and the surrounding iron needs to be left
to solve this problem.

The pole side of the deep pot magnets should always be kept clean, which
ensures maximum effectiveness when you apply or separate it from the surface.
The holding power of the magnets will also be reduced if it is used on an
uneven, painted surface.

Souwest Magnetech is a professional deep pot magnets factory, we provide
magnets material, cylinder magnet ndfeb, rare earth cylinder magnets, heavy
duty magnetic hooks, etc. For more information, please feel free to contact us!
