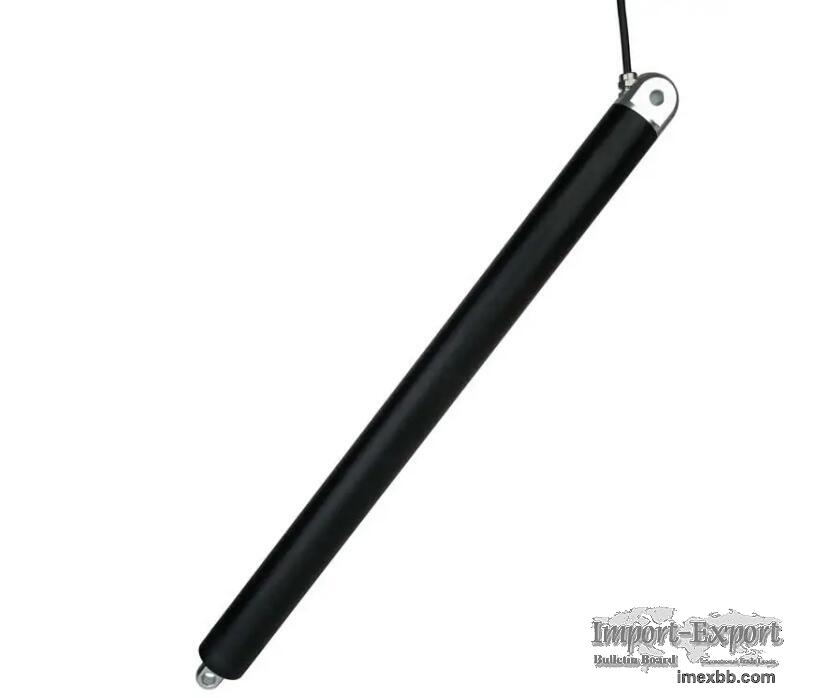

DDTG-36 Micro Tubular Linear Actuator

DDTG-36 Small Linear Servo Actuator
The DDTG-36 Micro Tubular Linear Actuator is a high-performance actuator
designed for precise linear motion control. With a compact size and a
tubular design, it is perfect for applications where space is limited.
Featuring high speed and accuracy, it is suitable for industries such as
robotics, medical devices, and automation.

The following video shows the two-section-shape of our old style. At
present, our new style is straight-tube-shape with stronger Stability.
Please refer to the pictures and drawings.

Technical Data of DDTG-36 Micro Tubular Linear Actuator
Model DDTG-36
Input Voltage 12V or 24 or 36V or 48V
material of outer tube AL 6063/stainless steels 304
material of lead screw stainless steels 304
material of piston rod stainless steels 304
material of the nut DuPont POM, USA
Stroke Length 50～400mm
Motor Type brushed motor
Max Load 2000N
Self-locking Force 2300N
No-load Speed 3.5-25mm/s
Load Speed 2.5-17mm/s
Limit Switch built-in
Duty Cycle under max load,work for 50 times , stop for 20minutes
（15%-20%）;under min load can work continuously
Protection Class IP67
Operating temperature -20-60℃
Wire length Custom
Noise on load ≤60db

Dimension of DDTG-36 Micro Tubular Linear Actuator
DDTG-36 (mm) Standard Hall Sensor Over Current Protection
Min. install dimension L+S 203+S 218+S 223+S

DDTG-36 Micro Tubular Linear Actuator Customizable Options
Wire length

Stroke length

Install dimension

Material of outer tube（6063AL or SUS304）

Color

Bracket

Contr , ol box

If you want to know more kinds of custom linear actuator, please visit our
website.
