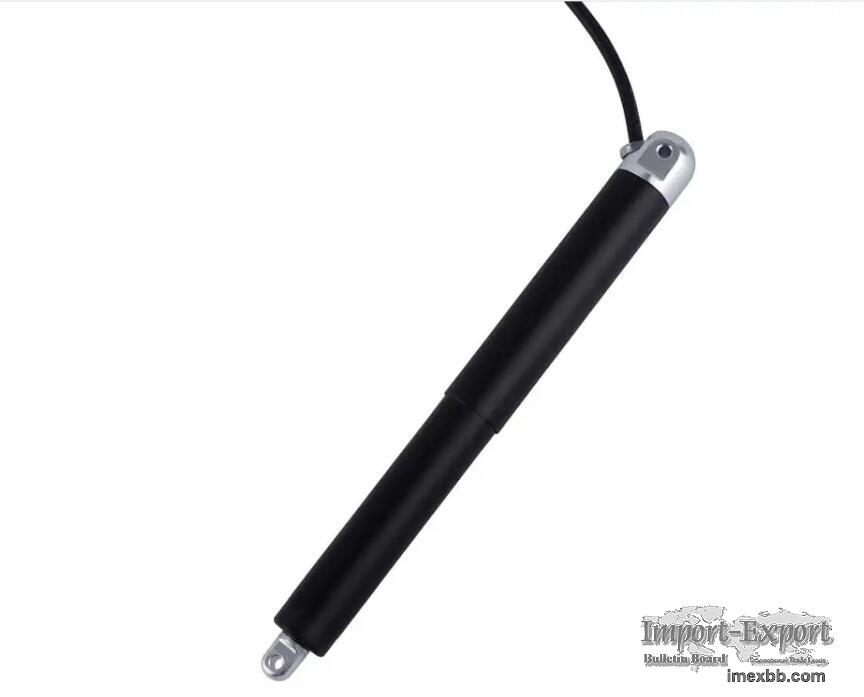

DDTG-16 Micro Tubular Linear Actuator

DDTG-16 Micro Tubular Electric Linear Actuator
Introducing the DDTG-16 Micro Tubular Linear Actuator, a marvel of compact,
high-precision engineering. Despite its small footprint, it packs a punch,
delivering reliable, efficient linear motion. Ideal for applications where
space is at a premium, it excels in a variety of settings. Its robust design
ensures longevity, while its precision mechanics offer smooth, accurate
movement. Experience the perfect blend of size and performance with the
DDTG-16.

Technical Data of DDTG-16 Micro Tubular Linear Actuator
Model DDTG-16
Input Voltage 12V or 24 or 36V or 48V
material of outer tube AL 6063/stainless steels 304
material of lead screw stainless steels 304
material of piston rod stainless steels 304
material of the nut DuPont POM, USA
Stroke Length 20～100mm
Motor Type brushed motor
Max Load 100N
Self-locking Force 125N
No-load Speed 7.5mm/s
Load Speed 5mm/s
Limit Switch built-in
Duty Cycle under max load,work for 50 times , stop for 20minutes
（15%-20%）;under min load can work continuously
Protection Class IP67
Operating temperature -15-40ºC
Wire length Custom
Noise on load ≤60db

Dimension of DDTG-16 Micro Tubular Linear Actuator
DDTG-16 (mm) Standard
Min. install dimension L+S 103+S
A 78

DDTG-16 Micro Tubular Linear Actuator Customizable Options
Wire length

Stroke length

Install dimension

Material of outer tube（6063AL or SUS304）

Color

Bracket

Contr , ol box

Now the price of micro linear motor is reasonable, if you have needs, please
contact us.
