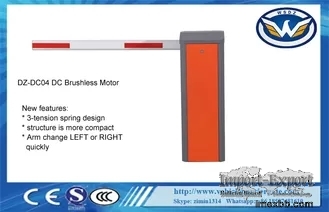

DC24V Car Park Safety Barriers 2 Spring For 6m Arm Direction Change Easy

New 3rd DC brushless Motor Barrier Gate with 2 Spring for 6m Arm Direction
Change Easy







1. Product Overview
Thank you for purchasing the 3rd generation brushless motor barrier gate
from WONSUN.

This product adopts the latest mold design technology, mold die-casting
manufacturing technology,

brushless control speed regulation technology, left and right
interchangeable quickly, no clutch

design, more reliable quality, more convenient to use, the movement adopts
two-stage worm

gear drive, curved curve The arm has a three-link structure, and the landing
rod is fast and

stable. Easy maintenance and long service life.





2. Features

2.1 The running speed can be adjusted from 1.5s to 8s

2.2 Can be quickly interchanged

2.3 Open the barrier gate by motor wheel when power off ,automatically reset
after power on

2.4 Curved crank arm three- link movement structure, the operation is stable

2.5 Wireless remote control control open/close

2.6 Auto reverse function(force adjustable)

2.7 Infrared photocells connector is available

2.8 Loop detector connector is available.

2.9 Well-integrated with car parking system equipment,with wire control(must
be switch signal)

2.10 Connector for traffic light(AC220V,power less than 40W)

2.11 Offering dry contact signal for car parking system(COM,NC,NO)

2.12 Auto-delay when closing(adjustable)

2.13 RS485 or CAN network communication interface(no need to install module)

2.14 Counting interface

2.15 24V backup battery interface(Can be charged by using solar energy)(
optional)

3.Technical parameters
Working temperature(motor): -35℃~+85℃
Rated voltage:DC24V
Running speed:1.5s-8s
Rated current:8.58A
Rated power:160W
No-load speed:1850rpm
Rated speed:1400rpm
Output Power:56.8N.m
Output Power:56.8N.m
Remote control distance:≤100M(in the open place)
IP Degree:IP44
Max length of arm:6M


4. Equipment installation
Please select the correct type of barrier gate according to the
specifications of

the pace,and then fix the barrier cabinet with expansion bolts(refer to
Figure 3).

After determined the position,the barrier gate foundation should be done
according to the site conditions,and also

make the cast-in-place basement for the non-concrete ground.
