DC Micro Frameless Fans

WHEE is a leading cooling fan manufacturer in China, focusing on DC brushless
motor cooling fans/cooler and modular design, on products including industrial
cooling fan, universal cooling fan, centrifugal blowers, frameless fans, micro
fans, CPU cooler,dc brushless cooling fan, brushless cooling fan, universal
cooling fan and thermal module. Cooperative manufacturer of systematic OEM/ODM
products.

WHEE DC Micro frameless Fans are low noise, low power consumption, large air
volume, long life, high reliability. If you are searching for low power
consuming frameless fans, we have miniature 5v cooling fan / small 5v fan /
micro fan 5v available for you.

DC Micro Frameless Fans Functions

FG: FG Signal

RD: RD Signal

PWM: PWM Signal

VC: Voltage Control

TC: Temperature Control

DC Micro Frameless Fans Specifications

BEARING TYPE F.D. Bearing /One ball /Sleeve bearing/ Two ball
FRAME P B T. UL94V-0
IMPELLER P B T. UL94V-0
P C B UL94V-0
MATERIAL LIST RoHS Compliant
OPERATING TEMPERATURE -10 ℃ ~  + 70 ℃
STORAGE TEMPERATURE -40 ℃ ~  + 70 ℃
DIELETRIC STRENGTH Applied a 500VAC for 1.0 minute or 600VAC for 2 seconds
between housing and both lead wires.
INSULATION RESISTANCE At least 10 MΩ at 500VDC between internal stator and
both lead wires.
LIFE EXPECTANCY 30,000(S)/40,000(F)/50,000 hrs(2B) in running conditions at
40℃ ambient.

DC Micro Frameless Fans List

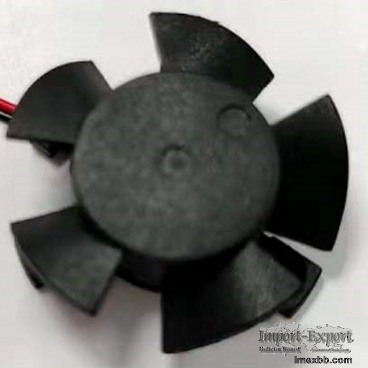

30*30*10 DC Micro Frameless Fans

Minimum Order: 1000 pieces

Click to Enlarge
