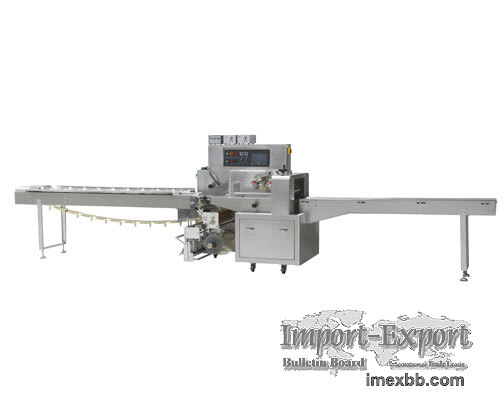

DAILY NECESSITIES HFFS PILLOW PACKING MACHINE 450X

Daily necessities include a dishwashing block, sponge, cleaning cloth, steel
wire ball, soap, towel, razor, comb, and other daily necessities. We can also
customize the packaging machine suitable for you according to the materials
provided by users.

DAILY NECESSITIES HFFS PILLOW PACKAGING MACHINE 450X TECHNICAL PARAMETERS
Machine Model GN-ZB-450X
Film Width Max 440mm
Bag Length 120-450mm
Bag Width 50-200mm
Product Height Max 80mm
Film Roll Diameter Max 320mm
Packing Speed 40-100 bpm
Power Supply 220Vac  56/60Hz  2.8KW
Machine Dimension L4950 × W845 × H1400mm
Gross Weight 650Kg
Remarks: The packaging film can be connected under the normal working state of
the machine, saving time and high efficiency

Daily Necessities Hffs Pillow Packing Machine 450X Main Parts Configuration
Main Parts Configuration  (In case of replacement, the same grade shall
prevail)
No. Components Brand
1 PLC PANASONIC JAPAN
2 Inverter PANASONIC JAPAN / SHIHLIN TAIWAN
3 Touch Screen XINJIE/MCGS CHINA
4 Temperature Controller ALSET CHINA
5 Photocell ALSET CHINA
6 Encoder RONGDE CHINA
7 Two Position Switch GLELE CHINA
8 Proximity Switch ENVK TAIWAN
9 Power MINGWEI TAIWAN
10 Solid State Relay SCHNEIDER GERMANY
11 Intermediate Relay OMRON JAPAN

Features of Daily Necessities Hffs pillow packing machine 450X
01
The length of the extended feed conveyor can be customized according to the
customer's products

02
Double drive longitudinal seal and advanced longitudinal seal heating
technology are adopted, with low longitudinal seal temperature, good seal, flat
and beautiful grain

03
Flexible forming box.

04
The cantilever structure can reduce dirt and dust accumulation and facilitate
cleaning and sanitary cleaning. It does not affect the maintenance of
mechanical and electrical components.

05
Left to Right operating direction.

06
With reel automatic centering fastening mechanism and reel braking system top
frame.

07
Three rollers are used for film pulling and transverse sealing

08
The user can set the packaging parameters of a variety of products in the man-
machine interface. When using, the user only needs to select the corresponding
data from the memory to carry out the packaging operation.

09
The machine includes PLC, man-machine interface and frequency conversion
control, and has the functions of parameter setting, machine status
information, fault diagnosis and so on.

As a leading packing machine company in China, We provide l sealer machine,
vffs machine, horizontal pillow packing machine, air pillow packaging machine
and etc. For more information, please feel free to contact us!

Minimum Order: 30 sets
