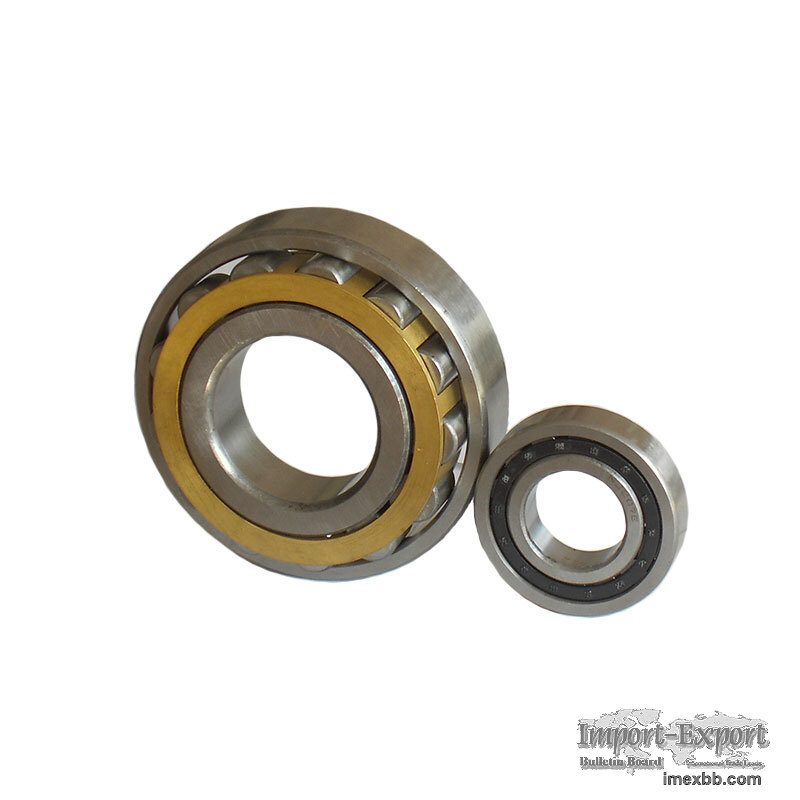

Cylindrical roller bearing

Product Description
NUP 210
rincipal dimension
Bearing No. nup 210
I.D. 50mm
O.D. 90mm
Width 20mm
Bore Type Cylindrical
Number of Rows 1
Internal Clearance C0
Ring Separation O/R assembly separable I/R
Operating Temperature Range Maximum of +300 °F
Dynamic Load Capacity 16520 lbf
Static Load Capacity 15620 lbf
Precision Rating RBEC 1 (ISO Class Normal)
Feature Super finished raceways
Quiet operations, Low noise
ISO standard interchangeable dimensions
Electric Motor Quality (EMQ)
Contact seal(s) offer superior lubricant retention and bearing
protection from contaminants
long life
high temperature resistance of motor-bearing
