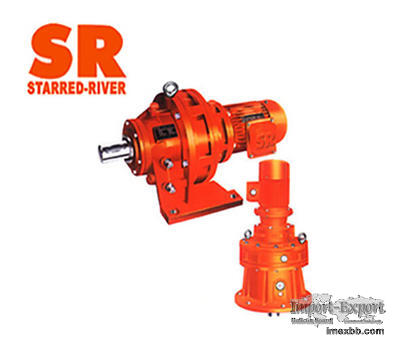

Cycloidal Gear Reducer

Equipment method:
--Foot installment, flange installment
--Horizontal type, vertical type.Various of motors or double shafts can be
equipped

Characteristics：
1). Multi-stage transmission can be adopted, and the reduction ratio is
larger.
2). Small size, stable operation and low noise.
3). Reasonable design, easy maintenance, easy to disassemble and install.
4). Reduction ratio of 1:87 can be achieved, and the efficiency is above
94%
5). Reliable and hardened (HRC58 ～ 62), so durable and long life.

Cycloidal gear reducer is a novel transmission device that uses the
principle of planetary transmission and adopts the cycloidal pin tooth
meshing, so it is usually also called planetary cycloidal gear reducer. All
transmission devices of the cycloid pin gear reducer can be divided into
three parts: input part, deceleration part, output part.

The machine is divided into horizontal, vertical, double-shaft and direct-
connected assembly methods. Its unique stable structure can replace
ordinary cylindrical gear reducer and worm gear reducer in many cases.
Therefore, the cycloidal gear reducer is widely used in various industries
and fields, and is generally welcomed by customers.

Minimum Order: 100 pieces
