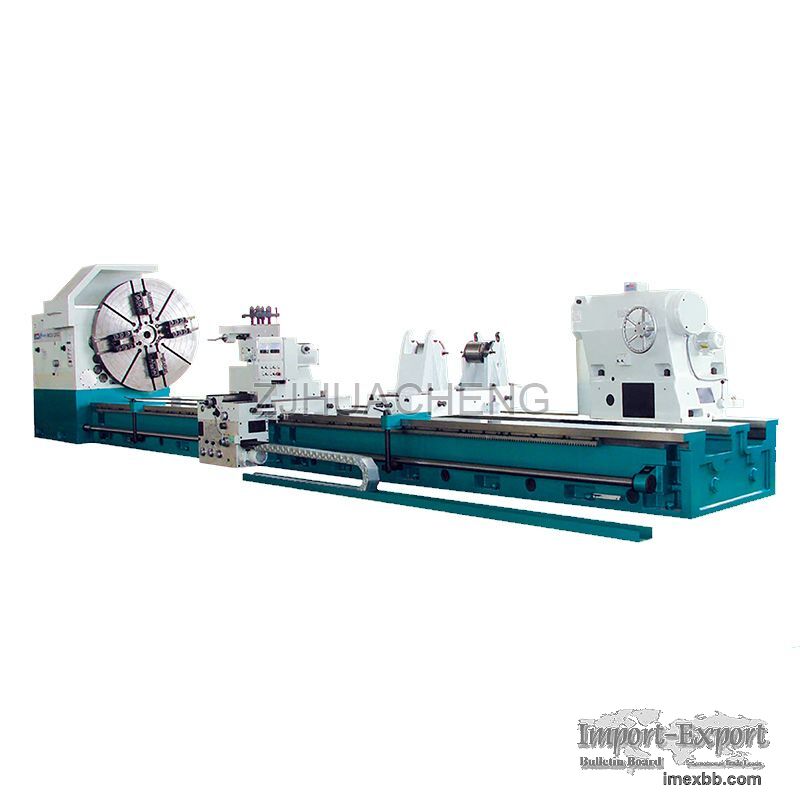

CWZ Unniversal Heavy Duty Lathe for sale

This machine is a universal lathe, suitable for High speed steel and hard alloy
cutter to process axial parts, cylinder type and disk parts of different
materials, turning excircle, section, slot, boring holes and inner cone.In
addition, it also use upper tool post to turning various threads with the
length less than 600mmm by change gear. (special orders can turning total
length of screw thread)
Huasheng is heavy duty lathe manufacturers and Exporter
Spindle is two supporting structure, driven by DC motor , spindle speed range
is 0.8-160r/min with stepless speed regulating.There are 3 rectangular guide
ways. The whole bed seems to be a box with high rigidity. Lathe is equipped
with a separate pump, forced lubrication, carrige box, the tool post, saddle,
tailstock can fast moving. Huasheng-heavy lathe machine has high rigidity, high
efficiency, safe and reliable, convenient operation, etc
MODEL CWZ61160 CWZ61180 CWZ61200 CWZ61220
CWZ61240 CWZ61250
CAPACITY
Max.swing over bed 1600mm 1800mm 2000mm 2200mm 2400mm 2500mm
Max.swing over cross slide 1250mm 1450mm 1650mm 1850mm 2050mm 2150mm
Center distance 3M, 4M, 5M, 6M, 8M, 10M, 12M, 16M
Max.weight of workpiece 32T
Width of bed 1600mm
HEAD STOCK
Spindle hole Φ85mm
Spindle taper Φ120mm taper 1:7
Spindle speeds 3 stage hydraulic pressure stepless speed change（0.8-18）
（2.4-54）（7.2-160）r/m , in
GEAR BOX-THREADS&FEEDS
Metric thresds range(pitch) 2-40mm(Full length thread can be machined for
special order)
Inch threads range(inch) 1-14
Worm gear threads range(module) 1.5-20mm
Longitudinal feeds range 0.125-45mm/ spindle every turn
Cross feeds range 0.063-24mm/ spindle every turn
Rapid feed:long/cross 3000mm/min,1500mm/min
TOOL-POST
Tool section 70*70mm
CARRIAGE
Cross slide travel 725mm
Middle slidle travel 600mm
TAILSTOCK
Sleeve diameter 300mm
Sleeve taper Φ100 taper 1:7
Sleeve traver Φ300mm
MOTOR
Main motor 80KW（DC）
Rapid feed motor 1.5KW
Tailstock motor 1.5KW

Minimum Order: 1 sets
