Cutting-Edge ELO for Superior Connectivity Coolserver

Custom Heat Sink Solutions from Coolserver for Electronics Cooling

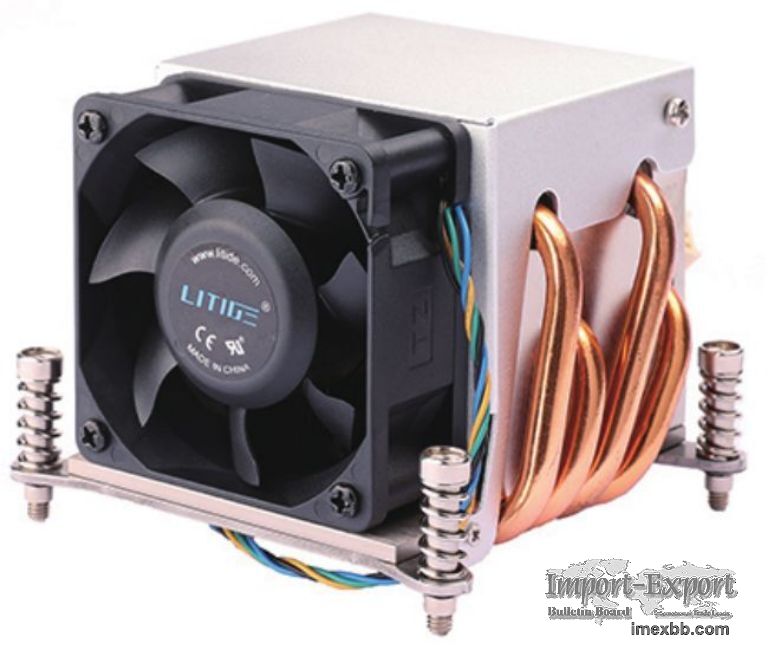

CPU coolserver B6
The CPU coolserver is a key component of the computer, ensuring stable
operation of the CPU.A popular cooling module is widely praised for its
innovative
design, efficient performance and affordable price.When purchasing, please
make
sure it is compatible with the CPU model and follow the installation
instructions
to ensureThe heat dissipation effect extends the service life of the
computer.
Small batch customization with quick proofing
》Efficient heat dissipation and intelligent temperature control.

》Compatibility and easy installation.

》Compatible with, and manufactured from highly thermally conductive

materials such as copper and aluminum.

》Durability and reliability.

》Seamless and perfect joint, no worries about leakage.
Model ：80800930 Processor architecture：Intel Socket 2011 Square ILM
Chassis architecture：2U Server and Up ( Active ) size：89.5 x 89.5 x 69.0
mm Power consumption：145W Material：Cu Base + AL Fin + 6025 Fan Thermal
paste：Shin-Etsu X23-7783D Pre-Applied Fan model：TD6025B12HA Rated
voltage：12 VDC
Starting voltage：7.0 VDC Rated current：0.45 A Rotating speed：6800±10%
RPM Bearing：Two Ball Air volume：41.4CFM wind pressure：14.74 mm H2O
noise：47.67 dBA
PWM function：PWM Control Safety certification：UL & CE Environmental
protection level：RoHS 2.0 Plug terminal：2510 – 4Pin; Pin1,4

Minimum Order: 10 pieces
