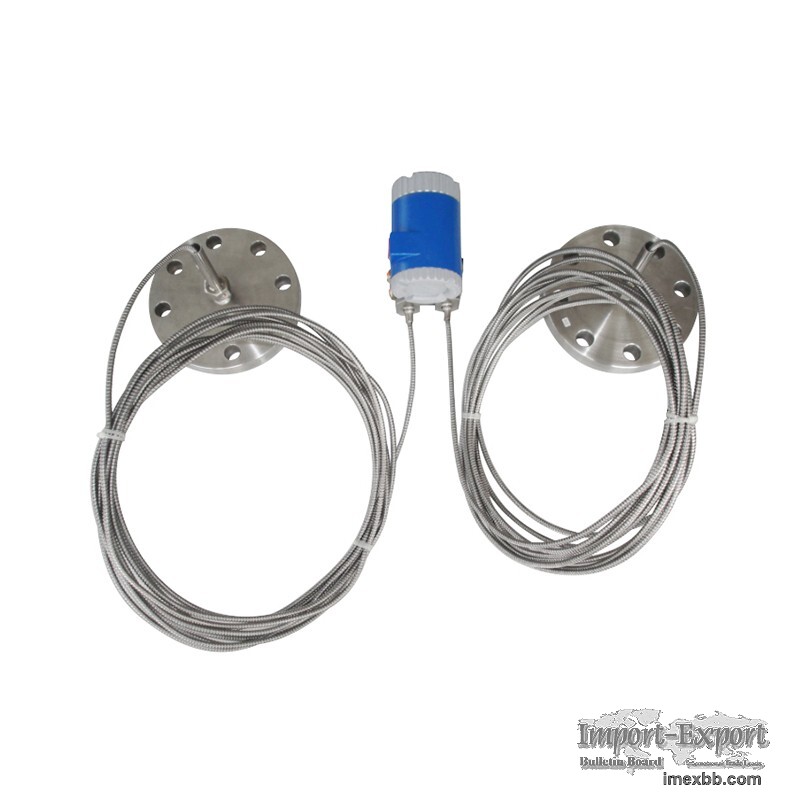

Customized Diaphragm Differential Pressure Transmitter

Lanso Instruments Inc. is a Canada-based industrial products manufacturer
& supplier specializing in pressure measuring equipment. The company's
extensive product portfolio and dedication to high-quality products , such as
pressure measurement device, gas density monitor, gas density switch, gas
density transmitter, pressure gauge and so on, have earned us high brand
recognition and established long-term partnerships with multinational
corporations including ABB, HYOSUNG, TOSHIBA, SCHNEIDER, SIEMENS, and so on.



Customized Diaphragm Digital Differential Pressure Transmitter is suitable for
different working conditions.

Description of Customized Diaphragm Differential Pressure Transmitter

By installing customized diaphragm seals on chosen types of pressure
differential indicator, the custom pressure sensor enables measurement of
highly viscous, crystalizing fluids where otherwise difficult to measure. Also,
corrosion-resistant materials can be chosen for the diaphragm.

Features of Customized Diaphragm Differential Pressure Transmitter

Flange standards and specifications can be customized for customers

Suitable for different working conditions

Provide diaphragm system for customer instruments

Various diaphragm material are available

The length of the capillary can be customized

Technical Data of Customized Diaphragm Differential Pressure Transmitter

Pressure Transmitter: Any LANSO transmitter
Nominal Range: 0-20 kPa to 0-2 MPa, customized upon request
Accuracy: 0.1% to 1.0%
Flange Standard: HG20592/HG20615/EN1092-1/ASME/DIN32676
Wetted Material: SS 316L / HC276 / Monel / Tan
Diaphragm Filling: Silicone, Neobee M-20 (Edible Oil), Others
Capillary Tube: 400mm to 5000mm
Working Temperature: Silicone                       -20℃ to +60℃
Neobee M-20            -20℃ to +40℃


Options of Customized Diaphragm Differential Pressure Transmitter

Process Connection Dimension Customizable

Markings Customizable

As one of the most professional digital differential pressure transmitter
manufacturers, LANSO has top quality digital differential pressure transmitter
and digital differential pressure sensor for sale. If you want to know more
about our products or other information of our customized diaphragm
differential pressure transmitter, please contact us or leave a message through
our website.

Minimum Order: 700 bags
