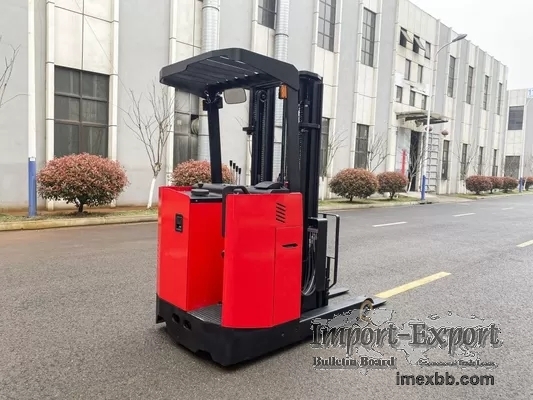

Customization Electric Pallet Reach Truck streamline warehouse operations

Customization Electric Reach Forklift Seat Style Rated Capacity 1500 KG Side
Pull Battery Cylinder Safety Shut-off Valve

Advantage:

AC drive motor, strong climbing force
High strength fork legs and forks
Special mast channel steel for high-strength forklift truck
Large capacity maintenance free battery
Built in intelligent charger
Multifunctional integrated, narrow channel dedicated operating handle
Low noise lifting hydraulic pump station
Good climbing performance

Security:

Curve automatic deceleration device
Drive stepless speed regulation, safety and mute
Controller multiple automatic protection system
Emergency reverse anti-collision/ emergency power-off switch

AC EPS

Fixed fork

Optional lithium battery

Optional 24v165/210ah lead-acid battery

Applicable to single-sided pallets

Model CQD15 CQD25
Power type Electric
Operation mode Seated type
Rated load kg 1600 2500
Load center distance mm 600 600
Tire type mm Solid PU
Front wheel specification mm 267*114
Specification of driving wheel mm 343*135
Number of tires 2/1X
Fork inclination (forward / backward) 3/ 5
Standard lifting height mm 7500
Free lifting height mm 2585
Height of mast closed mm 3150 3250
Maximum height during lifting mm 8485
Height of roof protection frame mm 2190
Fork leg height mm 310
First pedal height mm 320
Second pedal height mm 530
Seat height mm 975
Distance between the second pedal and the roof protection frame mm 1615
Ground clearance of fork leg mm 110
Floor clearance of underbody mm 80
Overall length mm 2440 2500
Reach distance mm 550 650
Front overhang distance mm 160
Wheelbase mm 1495 1665
Overall width mm 1270
Track width (front / rear) mm 1158/0
Outside width of fork mm 210-800 260-820
Fork specifications mm 1070*100*35 1070*122*40
Channel width (1000*1000mm tray) mm 2745 2975
Turning radius mm 1775 1945
Walking speed km/h 7.5/8
Lifting speed mm/s 150/260
Descent speed mm/s 300/160 350/160
Gradient % 8/10 6/8
Drive motor power kw 4.5 6.5
Lifting motor power kw 6.3 8.6
Battery voltage/ capacity v/ah 48/400 48/420
Battery weight kg 650 700
Vehicle weight kg 3500 3650
Steering type Electronic transformation
Parking brake type Electromagnetic braking
