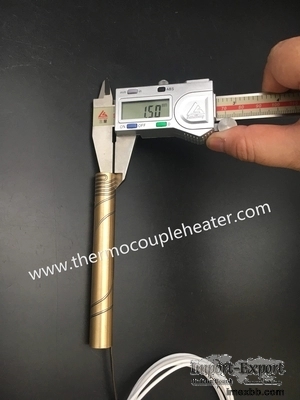

Custom Micro Tubular Brass Coil Heater With Super Thin Wall 1.5mm

Micro Tubular Brass Coil Heater With Super Thin Wall 1.5mm





1. Product introduction



Press in brass coil heater, the coil heater is designed to beset in the brass
sheating, can eliminate known problems associated with the casting process. The
machined path in the brass for the heater enables exact repeatability of heat
profile. By never exposing the coil heater to molten brass there are no risks
of shifted heater coils, or destruction of the thermocouple junction.Flexible
design options include internal, external "wound in" or external slotted type J
or type K thermocouples.



2. Characteristics



1) Has quick heat dissipation, high insulation, greatly extend the service life
of heater

2) Can be built with a Micro, Mini, Flat, Low profile, or Round Nexthermal Coil
Heater.

3) Safety in use

4) Faster responding heater due to eliminated air pockets than cast in brass

5) Profile and heater orientation precisely repeatable

6) Thermocouple not exposed to molten brass temperatures – Improved durability

7) Potential for designing thin walled brass heaters to minimize OD impact

8) Faster responding heater due to eliminated air pockets than cast in brass



3. Features:



1) Standard sizes available with various cross section
2) Various Watt Density options available.
3) Robust Design with Choice of Terminal Exits
4) Available with built in Thermocouple
5) Designed for even heat profile.
6) Precision fit on Hot Runner Nozzles & Manifolds.
7) Highly Non-corrosive.
8) Maximum heat transfer due to more contact area.
9) Advanced Thermal Engineering.



4. Application


1) Injection moulding machine nozzle

2) Hot Runner Nozzles & Bushings

3) Packaging machineries

4) Hot runner Injection moulds.

5) Blow Moulding Machine Nozzles.

6) PET prefrom & Thin wall container Moulds

7) Hot runner Manifolds.



Parameters are required to place an order !
