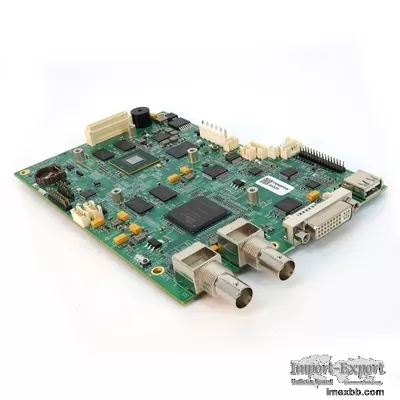

Custom Fr4 94v0 SMT PCBA Assembly Circuit Board Assembly Services Rohs
Approved

Pcb Smt Pcba Assembly Pcb Supplier Custom Fr4 94v0 Rohs PCB Board Supply
Circuit Board Copy Service

Factory Introduction:

• Employee :381• Engineer: 18• Quality :32• Production :274• PMC: 5•
Accountant: 3• Sales: 14• Purchase: 6• Top Management: 2• Area: 8,000sqm•
Line: 10 Lines– 4 SMT lines (Juki Mounting machine, reflow, AOI, X-Ray),
monthly production output: 28~32 million DPH;– 2 DIP lines, (wave
soldering, Touch-up, FCT/ICT), monthly production output: 800kpcs~1.2kkpcs
(based on the complicatesof PCBAs)– 3 + 2 Assembly lines (Assembling
jigs/fixtures, ultrasonic welding, functional testing device, etc.), monthly
production outputis close to 500,000~800,000pcs
SMT Lines 13 Lines
Capacity 8 Million Placements Per Day
Max Board Size 680*550mm Smallest:0.25"*0.25"
Min Components size 0201-54 sq.mm (0.084 sq.inch),Long
Connector,CSP,BGA,QFP
Speed 0.15sec/chip, 0.7sec/QFP
Wave-Solder Max.PCB Width:450mm
Min.PCB Width:unlimited
Components Height:Top 120mm/Bot 15mm
Sweat-Solder Metal Types:Part,Whole,Inlay,Side-step
Metal Material:Copper,Aluminum
Surface Finish:Plating Au,Plating Silver, Plating Sn
Air Bladder Rate: less than 20%
Press-fit Press Range:0-50KN
Max.PCB Size:800*600mm
Assembly Types SMT and Thru-hole
Solder Type Water Soluble Solder Paste, Leaded, and Lead-Free
File Formats Bill of Materials, Gerber Files, Pick-N-Place Files(XYRS)
Type of Service Turn-Key, Partial Turn-Kye, or Consignment
Component Packaging Cut Tape, Tube Reels Loose, Parts
Turn Time 1-15days
Testing XRAY Inspection, AOI Testing ICT, Flying Probe, Burn-in, Function
Test
Leadsintec was established in 2004 and is located in Shenzhen city,
Guangdong province. It is a high-tech enterprise focusing on the research,
development, production, and sales of electronic products and components.
The company has its own R & D team and is committed to providing all-around
solutions for the enterprise.

Since its establishment, it has been adhering to the principle of taking
users' needs as the core, focusing on its own technology research and
development, and has won the trust and praise of many enterprises with high-
quality products and attentive services, makes enterprises maintain
competitiveness in the fierce market competition and realize the rapid and
stable development of enterprises.
