Curved Wire Fence

PVC Coated and Galvanized Wire Mesh Fence, Curved Panels, Portable Fencing
We supply metal wire mesh fences for temporary and security fencing uses. Mesh
Panels can be flat welded and dimensional curvy panels.

Main Products Delivered

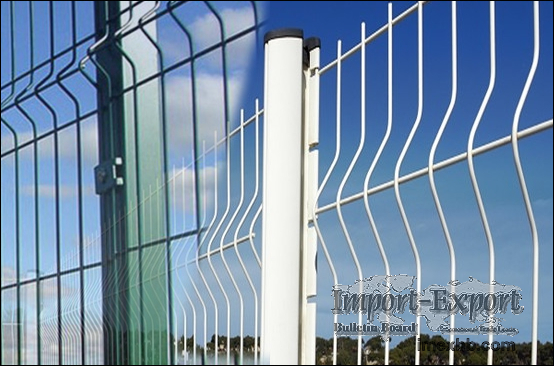

Peach Post 2D and 3D Curved Wire Mesh Fence
Powder coated bending wire mesh fence fixed with peach post
Mesh panel length: 2.1m * 2.4m, wire diameter: 4mm (3.5mm-5mm), opening: 60mm *
150mm
Horizontal tube: 38mm; stand pipe: 48mm: thickness: 2.0mm
Process: Welding; Fence length 2m, 2.5m as standard
Fence Material: Plastic coated galvanized steel wire mesh panels.
Installation: Plastic coated steel fence is easy to install, either in-ground
or above-ground, without the need to dig holes or damage the landscaping on
which the fencing is installed.
Features:
Our products enjoy such properties as corrosion resistance, aging resistance,
sunshine resistance and weather resistance. Guaranteed long-term use without
rusting. Can be repeatedly used.
Corrosion resisting form: PVC coated.
Colors available: Green and white, or other colors at customers request.
Applications: Curved coated mesh fence is mainly used for playground and
gardens, super highway, railway, airport, port, residence, etc.

Powder treatment options:
PVC spraying(galvanized before pvc)
PVC coated(galvanized before pvc).



PVC Coated Portable Fence Panels
Orange coated welded mesh portable fence

Height: 1800mm, 2100mm
Panel Width Options: 2300mm, 2400mm, 2500mm, 2600mm
Wire dia: 3mm, 3.5mm, 4mm, 4.5mm, 5mm
Portable fence fabric Mesh: 50mm×50mm, 75×75mm, 50100, 50×150, 50×200,
75×150mm
Pipe frame: O.D.25mm, 32mm, 40mm, 42mm, 48mm
Wall thickness options: 1.5mm, 2.0mm, 2.5mm, 3.0mm wall thickness
Finishes:
Electro galvanized then PVC coated;
Hot dip galvanized then PVC coated.

Double Wire Fence Panels
Double wire mesh fence has one vertical wire and two horizontal wires. It is
stronger than normal welded wire mesh, wire diameters are mostly 6/5/6mm,
8/6/8mm.

Mesh material: Welded panel, after galvanization, Powders Primer, and Powders
top coating
Powder coating thickness: 100-120 microns.
Feature: Strong, corrosion resisting, UV resisting, flat panels, rigid
structure, double protection with zinc coating and powder coating surface
treatment
Unique design: Flat panels with double horizontal wires and a vertical wire to
form a rigid mesh.
Surface treatment option:
Hot dipped galvanization + polyester powder
Electric galvanization + polyester powder
Hot-dipped Galvanized
Styles: 868, 656, 545

Fence Panels:
Wire Diameter: 8/6/8mm, 6/5/6mm, 5/4/5mm, and material is Q195, Q235
Mesh Size: 50*200mm /55*200mm/50*150mm/55*100mm, can be customized.
Panel height: From 0.4m - 3.03m.
Panel Width: 2.0m, 2.5m as standard.

868 Double horizontal wire fence
Wire 6MM*2+5MM*1.8MM*2+6MM*1, designed for Germany
Mesh Size: 50×200mm,55×200mm
Wire Thickness: 1×6mm Vertical wire & 2×8mm Horizontal wire
