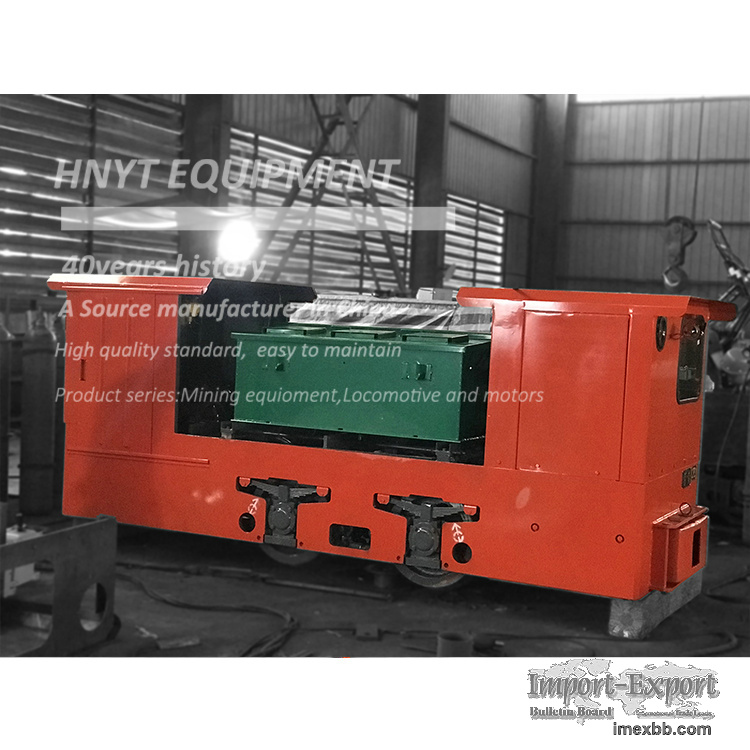

Cty5 Ton Explosion-Proof Accumulator Locomotive

Battery electric locomotive is a kind of track traction equipment powered by
batteries, which is generally used in mines. There are two types of battery
electric locomotives, explosion-proof type and ordinary type. The explosion-
proof type is mainly used in coal mines. There are also many options in terms
of speed regulation and braking methods. Speed control methods include
resistance speed control, chopping speed control and frequency conversion speed
control. Braking methods include pure mechanical braking, hydraulic braking and
compressed air braking. In addition, electric braking can also be selected as
an auxiliary braking method.
Adhesive / total weight (t) : 5 t
Track gauge (mm) : 500.600.762.900
Traction (KN) : 7.06
Max. Traction (KN) : 12.26
Speed(km/h) : 7
Battery Voltage (V) : 90 or 96
Battery Capacity (Ah) : 385 or 300AH
Power (KW) : 7.5KWx2
Dimensions Length(mm) : 2860
Width(mm) : 920,1082 or 1220
Height(mm) : 1550
Wheelbase (mm) : 850
Wheel diameter (mm) : 520
Min Curve radius (m) : 6
Controller : Resistencia o IGBT
Braking method : Mechanical or hydraulic brake

Minimum Order: 1 sets
