Cryogenic Control Valve

Cryogenic flow control valve is suitable for the adjustment of the medium (such
as liquid oxygen, liquid nitrogen, etc.) under the low temperature and strong
state of -60～-250℃. To ensure the accuracy of adjustment, a positioner must
be used. Pneumatic low temperature is composed of a pneumatic membrane actuator
and low temperature resistant single and double seat valve. The signal pressure
from the regulator is input into the air chamber of the pneumatic membrane
actuator to generate thrust, and the cryogenic flow control valve core is
driven by the connecting rod. The change of the valve core position in valve
control systems changes the flow cross-sectional area of the cryogenic control
valve to realize the adjustment of the medium flow.

Technical Data Sheet of G115 and G155 Series Cryogenic Control Valve

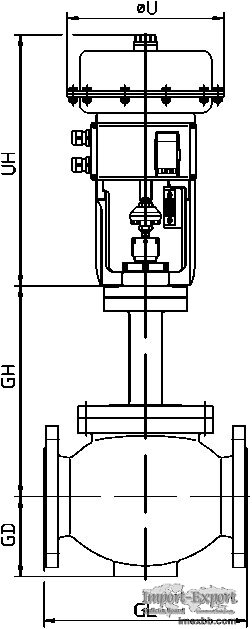

Weights and dimensions of G115 Series Cryogenic Control Valve

Weights and Dimensions
G115 series dn ANSI NPS 150 6" 200 250 300 350 400
8M 10" 12" 14" 16"
GL PN10-PN40 480 600 730 850 980 1100
GL Class 150 RF 451 543 673 737 889 1016
GL Class 150 RTJ 463.5 556 - -
GL Class 300 RF 473 568 708 775 927 1057
GL Class 300 RTJ 489 584
DEK5 On request
GD 190 240 305 335 395 445
Actuator Type Ul/UTA 0U UTIII 400
UTA 598
UH UTIII 618
UTA 1100 1363 1580
UHV UTIII 888
Weight* ca. kg UTIII 200 260
UTA 340 400 460 760 850 1500


As an reliable industrial valves supplier, we have types of pneumatic butterfly
valve for sale, if you have needs, please contact us.
