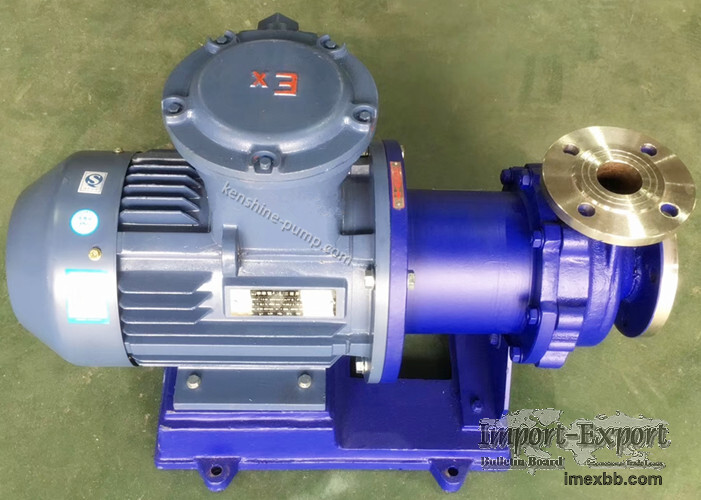

CQB magnetic driving pump heavy duty

CQB Stainless steel no leakage magnetic drive pump

CQB type stainless steel magnetic drive pump is a new type of completely leak-
free corrosion resistant pump developed by the national joint design group of
magnetic pump. Its technical and economic indexes are comparable to the level of
similar foreign products in the late 1980s, which is the supplement and
improvement of CQ type magnetic pump.

The main parts of CQB stainless steel pump adopts full stainless steel material
and the pump is used to convey the organic acid, organic compound, alkali, neutral
solution etc. and has good corrosion resistance, double helix carbon graphite
bearing and the adaptation of the hard alloy bushing, strong wear resistance to
ensure the service life of pump. It is an optimal pump to convey corrosive mediums
without leakage. The ideal pump for conveying corrosive media without leakage can
directly replace IH chemical process pump.

CQB type magnetic drive pump applicable range

CQB series magnetic pumps are widely used in petroleum, chemical, metallurgy,
pharmaceutical, electroplating, environmental protection and other industries. CQB
Stainless steel magnetic drive pump can transport flammable, explosive, highly
toxic, valuable liquid below 100℃.Adopt magnetic drive principle to convey
corrosive medium and no leakage.

Flow: 3.2-100m3/h head: 20-80m power: 0.75-75kw

Minimum Order: 1 sets
