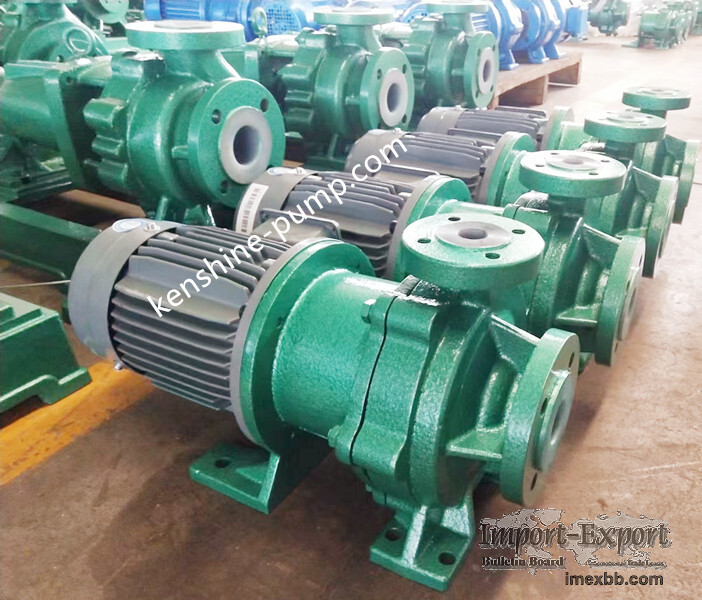

CQB-F fluoroplastic liner magnetic drive chemical transfer pump

Fluoroplastic magnetic driving chemical industrial pump

The flow parts of CQB-F fluorine plastic magnetic chemical pump are for fluorine
plastic (F46/PFA/FEP/PTFE/ETFE/PVDF etc.) materials. Pump outer casing is for metal
material (cast iron or carbon steel) to be enough for supporting pipeline weight
and resisting mechanical impact.

Flow parts of CQB-F fluoroplastic liner magnetic pump are made of fluoroplastic
(F46/FEP/PFA) and have a very good corrosion resistance.

CQB-F fluoroplastic liner magnetic pump can transport any concentration of acid,
alkaline, oil, rare and valuable liquid, toxic liquid, volatile chemical medium. It
is especially suitable for the transport of flammable, leaky and explosive liquid
chemical medium.

Sliding bearing of magnetic pump can be impregnated graphite, filled with
polytetrafluoroethylene, engineering ceramics, etc. Because engineering ceramics
have good heat resistance, corrosion resistance and friction resistance, the
sliding bearings of magnetic pump are mostly made of engineering ceramics. Because
the engineering ceramics are very brittle and the expansion coefficient is small,
the bearing clearance shall not be too small to avoid shaft holding accident.

CQB-F Fluoroplastic chemical industry magnetic pump has the advantages of compact
structure, beautiful appearance, small volume, low noise, reliable operation and so
on. CQB Fluoroplastics magnetic driving centrifugal chemical pump can continuously
transport acid, alkali, oxidant and other corrosive media with arbitrary
concentration. Applicable temperature: -30degree celsius to 120 degree celsius.

Minimum Order: 1 sets
