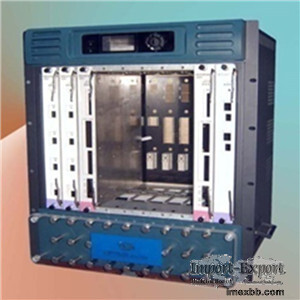

CPCI plug-in Box subrack manufacturer

CPCI plug-in Box subrack manufacturer

Product Description
19" Standard plug-in box, the whole machine considers EMC electromagnetic
compatibility; the depth of the side plate is 405mm;

1. 3U configuration with 5 slots (4TE); 4U configuration with 7 slots (4TE);
used for 6U*160 card horizontal installation;
Fan and power supply can be installed on the rear panel;
The cooling air enters from the air inlet on the front panel. Pass through the
plug-in card horizontally and exhaust through the fan;
The structure of the whole machine complies with the IEC60297 standard

2. 4U is used for 3U*160 card horizontal installation; 7U is used for 6U*160
card horizontal installation;
Power supply can be installed on the rear panel
The cooling air enters from the lower cover, passes through the card, and exits
from the top cover;
The structure of the whole machine complies with the IEC60297 standard

3. 7U is used for 6U*160 plug-in card installation;
Fan and power supply can be installed on the rear panel;
The cooling air enters from the lower cover, passes through the card, and is
discharged from the rear panel by the fan;
The structure of the whole machine complies with the IEC60297 standard

4. 9U is used for 6U*160 plug-in card installation;
Power supply can be installed on the rear panel;
The cooling air enters from the lower cover, passes through the card, and is
discharged from the rear panel by the axial fan;
The structure of the whole machine complies with the IEC60297 standard

Jiancheng is a data center manufacturer, which can customize the parameters and
models of idc micro module. We also provide OEM and ODM full set of outdoor
data cabinet solutions.
