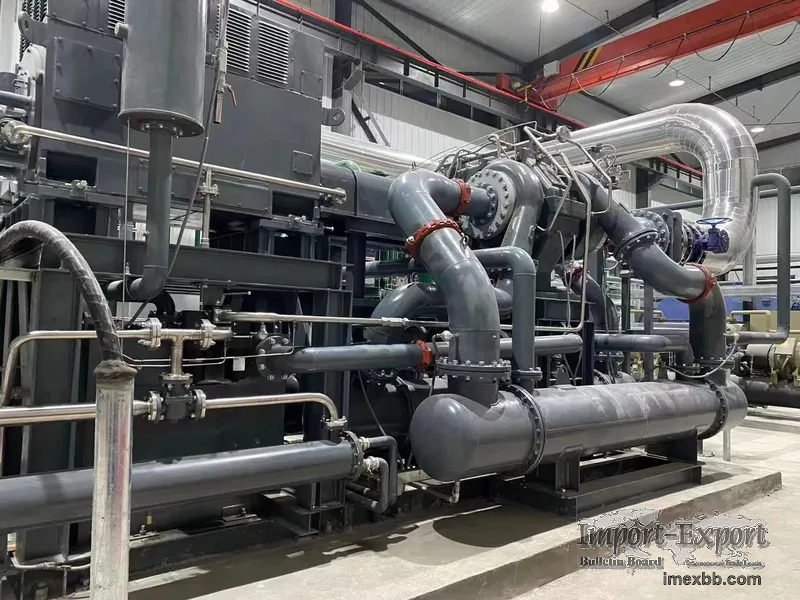

Cost Effective Oil free Centrifugal Air Compressor For Textile Industry

Power: 15KW~450KW
Pressure: 0.4Mpa-1.0Mpa
Machine Type: 8m³/min~484m³/min
Warranty: One year for the air compressor and two years for the head.
Service: Configuration, Parameters can be customized.
OEM&ODM.
An oil-free centrifugal air compressor is an ideal solution for the textile
industry, where clean, oil-free air is crucial for maintaining the quality of
products and ensuring efficient operation of machinery.




Cost Effective Oil free Centrifugal Air Compressor For Textile Industry
The air-suspended centrifugal compressor is a Single phase screw air
compressor that does not require a gearbox, speed increaser, or coupling. It
is directly driven by a high-speed permanent magnet synchronous motor (PMSM),
and the motor is controlled by a variable frequency drive(VFD) for speed
regulation. The impeller of the compressor is directly coupled to the motor,
and the shaft is sus pended on an active air bearing.

High-speed permanent magnet synchronous motor
●lt adopts a high-efficiency permanent magnet synchronous motor (PMSM) with an
efficiency≥96%;
●Compact in size;
●lt can achieve precise speed control, up to a maximum of 100,000r/min;
●The motor shaft is directly connected to the impeller, with a trans mission
efficiency of 100%;
●The insulation class is H class (maximum temperature res istance of 170*C);
●The motor pole number is 2 poles, suitable for a power supply of AC380V/50Hz

Impeller
●lt is made of high-hardness heat-treated aviation aluminum AL7075 (aviation
aluminum) ;
●lt is precisely manufactured through 5-axis machining center, with tolerances
kept below 5/1000millimeters; The surface is smooth and clean, and it has
higher efficiency compared to cast impellers; LE+R
●lt has high strength, suitable for harsh working conditions of high te
mperature and high pressure;
●lt is lightweight, with low power consumption;
●The direct connection between the impeller and the shaft can achieve a power
transmission efficiency of 100%.

Air bearing
●An air bearing utilizes high-speed centrifugalforce to suspend itself.
●lt has a sim ple structure and does not require auxiliary devices such as
lubricating oil supply;
●lt works on a non-contact basis, with no need for maintenance or repair;
●The bearing operates without vibration.
Efficient cooling system
We use a dual-stage air-cooling and self-cooling method with the latest
technology, and set up separate air flow channels inside and outside the main
unit in a reasonable and ingenious way to maximize the cooling of the main
unit. This ensures that the blower system can still operate steadily and
reliably even in hot summers.
Features
●Contactless operation, meaning no mechanical bearings that can wear out or
fail.
●Low noise output due to minimal wear and vibration.
●High efficiency and energy-saving, thanks to minimal friction loss and the
ability to achieve precise. control through frequency conversion speed
regulation.
●High reliability with low maintenance costs and a long service life.
●The oil free air compressor all in one has a simple structure, does not
require traditional mechanical bearings, and is easy to maintain.
●Pure oil free air compressor replaces Roots blower, with lower power
consumption, longer service life and lower maintenance cost.

Product Model
Model Type Air Delivery (m-/min) Motor Power (KW)
Outlet Connection Dimension (mm) Weight (Kg)
0.4 0.6 0.7 0.8 1
ST-XLCB20 Single impeller 16 14 13 11 8
15 DN150 700×1600×1380 430
ST-XLCB30 Single impeller 32 21 20 18 13
22 DN150 700×1600×1380 430
ST-XLCB50 Single impeller 47 35 32 29 23
37 DN150 700×1600×1380 470
ST-XLCB60 Single impeller 55 41 38 35 27
45 DN200 850×1775×1670 620
ST-XLCB75 Single impeller 75 52 48 43 35
55 DN200 850x1775x1670 620
ST-XLCB100 Single impeller 95 70 63 56 46
75 DN200 850×1775× 1670 630
ST-XLCB120 Single impeller 120 86 79 71 53
90 DN200 850×1775×1670 650
ST-XLCB150 Single impeller 150 106 96 85 68
110 DN300 1250×1975×1880 1150
ST-XLCB200 Single impeller 190 141 126 110 88
160 DN300 1250×1975×1880 1200
ST-XLCB250 Single impeller 218 165 151 136 105
185 DN300 1250×1975×2080 1350
ST-XLCB300 Double impeller 248 212 189 166 135
220 DN400 1300×2475×2200 1900
ST-XLCB400 Double impeller 331 283 252 221 177
300 DN400 1300×2475×2200 2150
ST-XLCB500 Double impeller 434 339 302 265 211
365 DN500 1600×2500×2250 2600
ST-XLCB600 Double impeller 484 399 356 313 249
450 DN600 2100×2700×2250 3300

Minimum Order: 1 pieces
