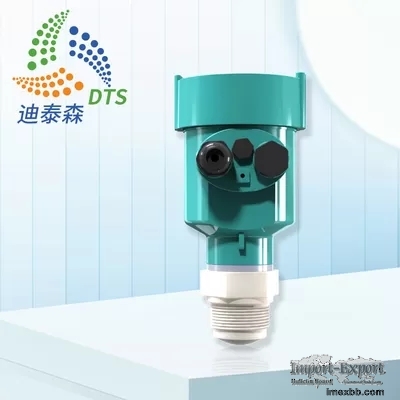

Corrosive Liquid IP67 Radar Level Meter Transmitter With 30m Detecting Dist

PRODUCT DESCRIPTION
Radar Level Meter For Corrosive Liquid 80Ghz With 30m Detecting Distance

Product Description:
DTS-RD-82-C Radar level measuring instrument is capable of accurately
measuring the maximum distance up to 30 meters.

The maximum measurement accuracy of the radar level measuring instrument is
extremely high, yet the device is simple to use which makes it beneficial to
many industrial manufacturers. High resolution achievable with the radar
measurements helps reduce errors in measurement and also reduce manual
inspection time.

With its advanced technology and user-friendly functions, the radar level
measuring instrument has become an ideal tool for industrial applications.


Features:
The size of the antenna is small, which makes it easy to install. This non-
contact radar will not cause any wear or pollution. It is almost immune to
corrosion and foam and it is almost unaffected by the changes in the water
vapour, temperature and pressure in the atmosphere. The beam angle is also
small, concentrating the energy and thus enhancing its echo ability. As a
result, it is more likely to avoid other interference objects.


Applications:
The 80G Radar Level Meter is an advanced microwave level sensor that has a
measuring range of 0.15~30m and is equipped with a microwave level sensor.
It uses a unique 80GHz measuring frequency and radar measuring principle to
precisely measure the level of various liquids and solids in tanks or other
containers. It is suitable for a wide range of applications such as
monitoring water levels in reservoirs and rivers, measuring the height of
oil in tanks, and detecting the level of materials in silos. This level
meter is an ideal choice for industrial operations that require accurate and
reliable measuring of liquid and solid levels.


Technical Parameters:
Parameter Value
Protection Grade IP67
Measuring Principle Radar
Product Name 80GHz Radar Level Meter
Measuring Range 0.15~30m
Data Storage Yes
Application Corrosive liquid
Resolution 1mm
Measuring Frequency 80GHz
Display LCD
Accuracy ±2mm
Signal output 4…20mA/HART
Digital output RS485/MODBUS
Process temperature -40~+120℃
Packing and Shipping:
Packaging and Shipping of 80G Radar Level Meter
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the
following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and
accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or
FedEx.
