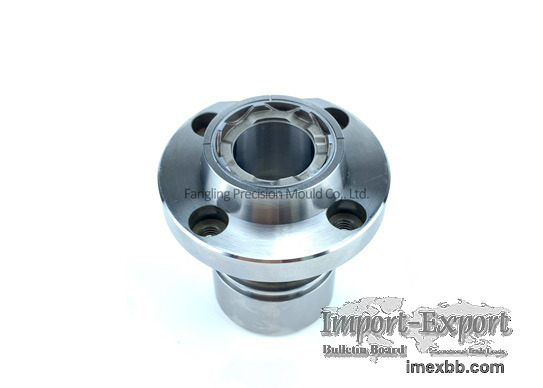

Core And Cavity Mold Parts

Core and cavity are used in the injection molding process, where the concave
part of the mold is the cavity and the convex part is the core. The core and
cavity in injection molding are used in pairs, with the cavity also referred to
as the female mold and the core as the male mold.

DESCRIPTION OF CORE AND CAVITY
What Does Core Mean In Casting?
A core is a preformed, bonded, sand insert placed into the mold to shape the
interior of a casting or a part of the casting that cannot be shaped by the
pattern. Cores are frequently used to create hollow sections or cavities in a
casting.

Function Of Core And Cavity
The core & cavity are the shaped sections in either half of the mould tool
which give the plastic product its final shape. The hot molten material is
injected into the core & cavity and then sets hard into shape. The core and
cavity design of this type of mold spare parts is essential in the correct
formation of the product.

DETAILS OF CORE AND CAVITY
What Are The Types Of Core?
Generally, cores are of two types:
Green Sand Core: ADVERTISEMENTS: A core formed by the pattern itself, in the
same sand used for the mould is known as green sand core. The pattern is so
designed that it provides the core of green sand. The hallow part in the
pattern produces the green sand core.

Dry Sand Core: A core is prepared separately in core boxes and dried, is known
as dry sand core. The dry sand cores are also known as process cores.

If you need any kinds of precision mold services, please contact us, as a
professional custom plastic molding company, Fangling is willing to offer you
high quality products.

Minimum Order: 1 cubic metres
