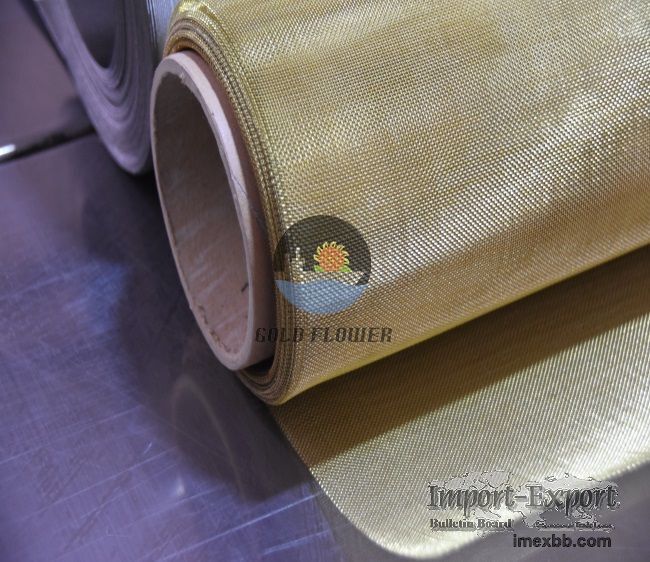

Copper Mesh Screen

Copper Mesh Screen
Material: brass wire,copper wire.
Weave: plain dutch,twilled dutch,reverse ,five heddle weave.
Characteristics: acid resisting,alkali resisting,heat resisting and wear
resisting.
Application: used for liquid ,industries of mining,oil, chemical, food,
phamaceutical, machine making, scientific research,aviation,etc.
We are manufacture and exporter of brass wire mesh,copper wire mesh with
excellent quality,price and service.Our factory produce kinds of specifications
of brass and copper wire mesh by clients’ requirement. Features of copper
mesh screen :has excellent abrasion resistance, corrosion-resisting, lower
electric conductivity as compared with copper.
Features of copper mesh screen: offers excellent electrical and thermal
conductivity, it is non-magnetic, anti-sparking and is resistance to
atmospheric corrosion, salt air and brine. Copper applications are limited due
to its low tensile strength, poor resistance to abrasion and common acids.
Plain weave:
Each warp wire and each weft wire passes over and under the next adjacent wire.
Plain dutch weave woven wire cloth has two sizes of wire diameter. The weft
wires has thinner wire diameter, which is woven tightly together to provide a
tight mesh for filtering. The warp wires has coarser wire diameter, which
provides strength to the woven wire cloth.
Twill dutch weave
It is the extension of the twill weave. Each warp wire and each weft wire
passes over and under the next two adjacent complementary wires, which is
similar as twill weave. The wire diameter of warp wire is larger than weft
wire. The mesh count in the weft direction is greater than the warp direction.
Dutch twill weave enables the weft wires to be woven more densely and much
smaller aperture sizes can be achieved.
Twill dutch weave is capable of supporting greater loads than the dutch weave.
It has finer openings than the twilled weave. It is used for filtering heavy
materials.
Reverse dutch weave woven wire cloth
Reverse dutch weave woven wire cloth has finer wire diameter in warp wire and
coarser wire diameter in weft wire. and the mesh count in the warp wire is
larger than the weft wire.
