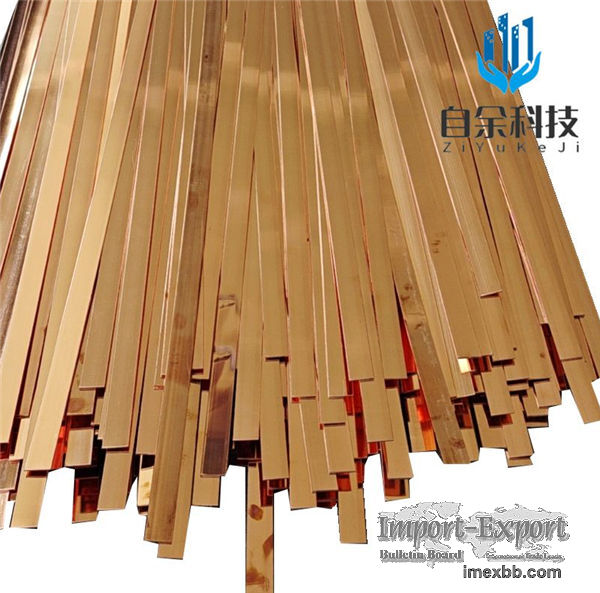

Copper Clad Steel Flat

The copper clad steel flat steel is produced by electroplating, and the purity
of the copper layer reaches 99.9% or above. Compared with copper-clad steel
grounding round wire, the voltage equalization effect is better. When making
the grounding lead, it can be close to the equipment foundation (cement pole,
pipe support, Angle steel support, steel surface, etc.), and the construction
is faster and more convenient.
Copper Clad Steel Flat characteristics
With good electrical conductivity, corrosion resistance, long life and other
advantages, it is the best choice to replace traditional steel, especially
galvanized flat steel.
Customization interval
General: 3m or 6m, the length can be customized according to customer
requirements
Model Number Specification Section surface （mm²） Reference
weight（kg/m)
JGYBG-1 25×4 100 0.63
JGYBG-2 27×7 189 0.89
JGYBG-3 30×3 90 0.8
JGYBG-4 30×4 120 0.8
JGYBG-5 40×4 160 1.42
JGYBG-6 40×5 200 1.43
JGYBG-7 50×5 250 2.23
JGYBG-8 50×6 300 2.31
JGYBG-9 60×6 360 3.2
JGYBG-10 60×8 480 3.38
JGYBG-11 80×8 640 5.7
