High-Quality Liquid Cooling Plates by Coolserver for Server Applications

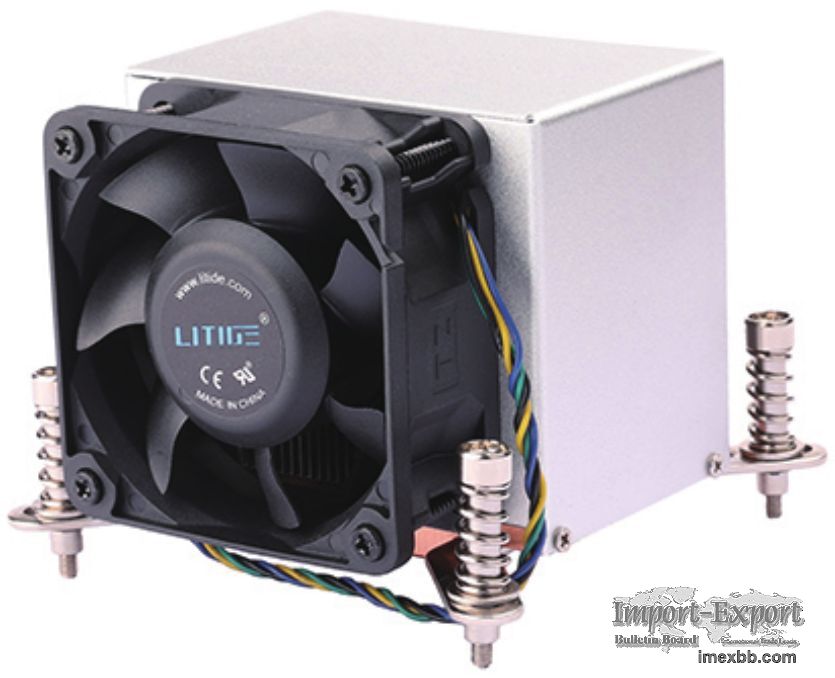

CPU coolserver H2
The CPU coolserver is a key component of the computer, ensuring stable
operation of the CPU.A popular cooling module is widely praised for its
innovative
design, efficient performance and affordable price.When purchasing, please
make
sure it is compatible with the CPU model and follow the installation
instructions
to ensureThe heat dissipation effect extends the service life of the
computer.
Small batch customization with quick proofing
》Efficient heat dissipation and intelligent temperature control.

》Compatibility and easy installation.

》Compatible with, and manufactured from highly thermally conductive

materials such as copper and aluminum.

》Durability and reliability.

》Seamless and perfect joint, no worries about leakage.
Model ：80802110 Processor architecture：Intel Socket 115X ILM Chassis
architecture：2U Server and Up ( Active ) size：91.0 x 90.0 x 67.3 mm
Power consumption：95W Material：Cu Base + AL Fin + 6025 Fan Thermal
paste：Shin-Etsu X23-7783D Pre-Applied Fan model：TD6025B12HA Rated
voltage：12 VDC
Starting voltage：7.0 VDC Rated current：0.45 A Rotating speed：6800±10%
RPM Bearing：Two Ball Air volume：41.5CFM wind pressure：14.74 mm H2O
noise：47.67 dBA
PWM function：PWM Control Safety certification：UL & CE Environmental
protection level：RoHS 2.0 Plug terminal：2510 – 4Pin; Pin1,

Minimum Order: 10 pieces
