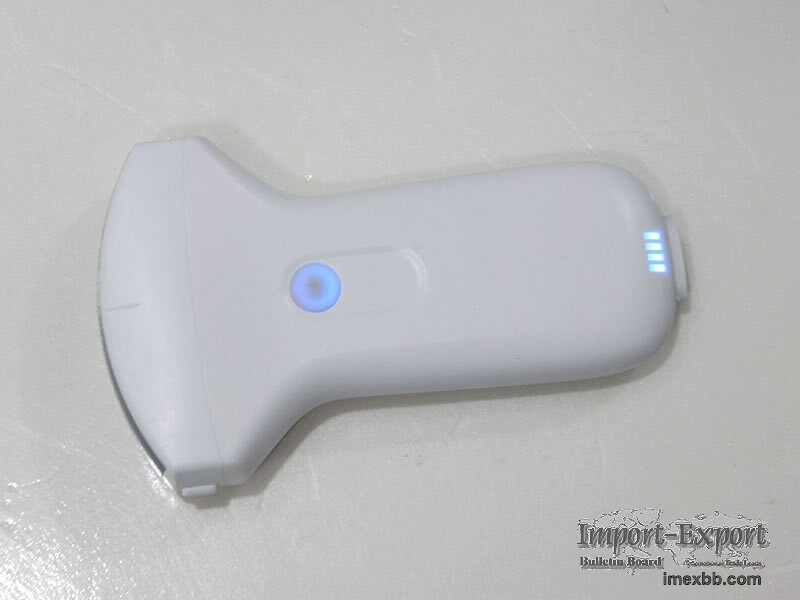

convex palm doppler ultrasound USB Wifi dual connect mode

Specifications:


- Display mode: B, B/M, B+Color, B+PDI, B+PW

- Probe frequency: 3.5MHz/5MHz

- Scan depth: 90/160/220/305mm

- Scan angle(Field of View): 60°

- Cineplay: auto and manual, frames can set as 100/200/500/1000

- Operation: with Freeze button on probe, and software operate by touch
screen

- Puncture assist function: the function of in-plane puncture guide line,

out-of-plane puncture guide line, automatic blood vessel measurement.

- Image Adjust: BGain(30db-105db), TGC, DYN (40/50/60/70/80/90/100/110),

Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF

- Measure: Length, Area, Angle, Heart rate, Obstetrics

- Image save: jpg, avi and DICOM format

- Frame rate: 18f/s

- Probe connect: by Wifi(type: 802.11g/20MHz/5G/450Mbps), or cable connect
by USB port

- Power supply: by Built-in Li-ion battery, also can connect cable and
charging while working

- Dimension: 11cmx6cmx2cm

- Weight: 120g

- Working system: Apple iOS and Android, Windows

Minimum Order: 1 sets
