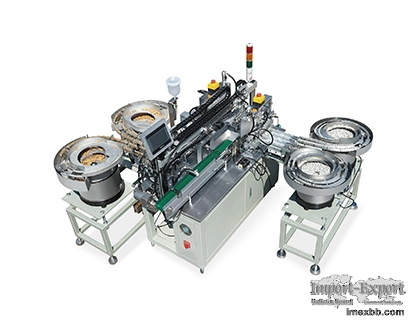

CONNECTOR ASSEMBLY MACHINE

The Welinktech Connector Assemble Machine is a cutting-edge device designed to
create a range of connectors for various industrial applications, including
electrical, coaxial, and fiber optics. The machine uses automated processes to
combine components like pins, sleeves, and sockets, producing the finished
connector device with a high degree of precision and replication.

The Welinktech Connector Assemble Machine employs various operations like cutting,
crimping, soldering, and testing to ensure the finished product meets quality
control standards. The use of this machine provides high-precision and superior
connector assembly processes, reducing production time and the cost of production.
These machines are widely used in the electronics and telecommunications
industries as they can produce a diverse range of connectors that meet specific
requirements, ensuring high-quality and reliable connections.

SPECIFICATION OF CONNECTOR ASSEMBLY MACHINE
Assembling area Single head assembly Double head assembly
Assembling speed 5800-6300PCS/h
Input 220V50HZ
Machine size 7150x150x150cm 200x200x160cm
Power 1.8kw
Weight 650kg
Air pressure 0.5-0.65MPa

WHAT MATERIALS ARE USED TO MAKE CONNECTOR ASSEMBLY MACHINE?

Connector assemble machines typically consist of several key materials to ensure
their proper functioning. The frame of the machine is typically made from a strong
and durable metal such as aluminum, steel or stainless steel. The machine's
internal components usually are crafted from high-grade plastics, stainless steel,
or other materials that can withstand high temperatures and mechanical stresses.

The machine may have electronic parts such as microcontrollers and touchscreens,
which require PCB boards, wires, and cables for their functioning. The materials
used to manufacture connector assemble machines should have high durability, heat
resistance, and conductivity to meet the requirements of the electrical and
electronic industries.

HOW TO USE CONNECTOR ASSEMBLY MACHINE?

Check all required components and make sure the machine is in good working order
before using it.

Gather all the cables, connection parts, and equipment required.

Follow the manufacturer's directions for installing the connector parts into the
device.

Prepare the wires by stripping them to the proper length before using.

Insert the prepared wires into the connector components that are fixed in the
machine.

Start the machine and select the appropriate settings for the type of connector to
be assembled.

Watch the machine carefully as it assembles the connectors and ensure there are no
errors or issues.

Once the connectors are completed, remove them from the machine and test their
functionality using a testing tool or a device.

There are many medical molding companies in China, but we are one of the best
choices for you.

Minimum Order: 1 sets
