Compact Tubed Cold Plate for Space-Constrained Designs

Efficient Cooling with Tubed Liquid Cold Plates: Applications and Benefits
Tubed Cold Plates High-Performance Tubed Cold Plates
The Tubed Cold Plate series serves as a cost-effective
and dependable means for thermal management,
prioritizing liquid cooling of components as the
optimal choice compared to traditional air-cooling
techniques.
Small batch customization with quick proofing
》A cost-saving thermal management solution ideal for components with varying heat
loads from low to mid-range.

》Compatible with widely recognized industry-standard coolants.

》The cold plate base is fabricated using premium aluminum 6063 alloy.

》Copper-tubed cold plates utilize a direct press-fit connection, ensuring
excellent heat transfer performance.

》tainless steel tubed cold plates feature stainless steel tubing (SS 304/316)
secured between two plates.

》Equipped with secure 3/8" push-connect tube fittings to ensure a robust
connection to the cold plate.

》The system comes with inlet and outlet tubing, each having an outer diameter of
3/8” (9.525 mm).

Maximum Pressure Rating: 200 psi

》The plastic tubing that connects to our Cold Plate fitting must possess a Shore A
durometer hardness of at least 90.

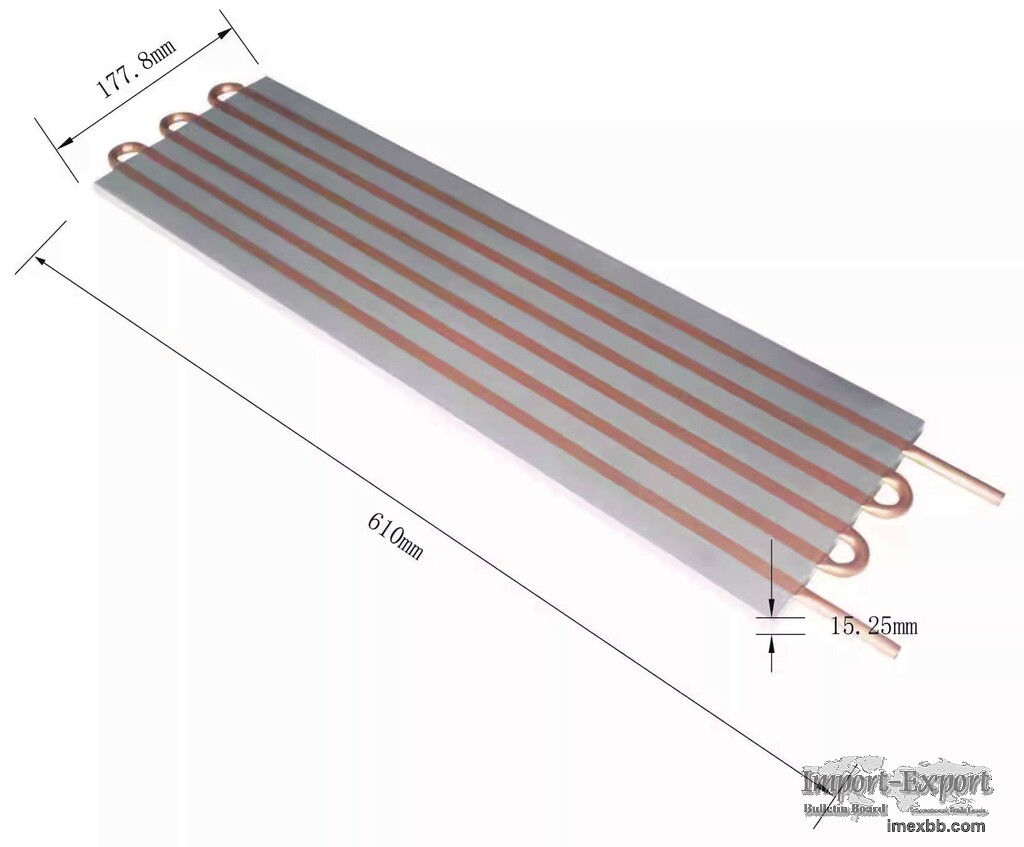

Model length width thickness Fluid compatibility wet path
T-HS202325 610mm 177.8mm 15.25MM NA NA

Mounting surface
Copper surface

Electron tube Material
NA AL6063

Minimum Order: 10 pieces
