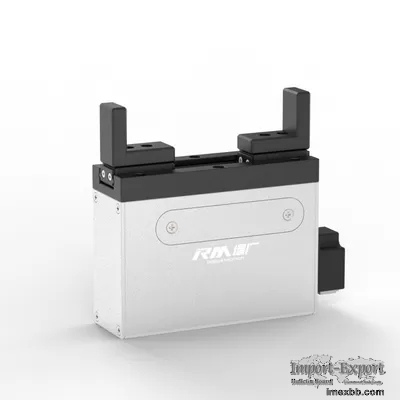

Compact Servo Electric Gripper

PRODUCT DESCRIPTION
Servo Electric Gripper High Rigidity,Drop Lock,Drop Detection RM-GB-11-40-2-
1-H-ITG
Servo Clamping Jaws (RM-GB-11-40-2-1-H-ITG) is a high performance product
that demonstrates outstanding performance with efficient control and
powerful clamping force. It has outstanding advantages such as high
rigidity, high load, high precision, high reliability, etc., and can adapt
to various complex working environments; from compact to heavy-duty type, it
provides a variety of optional strokes, with a wide range of specifications
to meet different needs; it can be adapted to a variety of collaborative
robots and industrial robots, to complete various types of assembly,
transport, palletising, etc., of items of different weights. The RM-GB has a
clamping stroke of 40mm, a guide length of 2, a side exit position and a
horizontal exit.

With a maximum payload of up to 7kg, which is 2-3 times its own weight, and
a maximum clamping force of 110N, the RM-GB is in a class of its own. It can
easily cope with both bulky, heavy heavy items and delicate, lightweight
miniature items. It has a service life of up to 10 million cycles, even
under extreme loads, without failure and with first-class stability.

Specifications
Output Cable: Side Wiring
Outgoing Line Method: Horizontal Wiring
Max.speed (mm/s): 80
Repeat Positioning Accuracy (mm): ± 0.05
Backlash (mm): < 0.1 ( Single-Side)
Permissible Load Torque: MR: 8.0, MP: 5.9, MY: 5.9
Control Method Bus: Modbus RTU/ CANopen
Control Method Interface: I/O
Interface: Input 2 Points(NPN), Output 3 Points( NPN)
Rated Voltage (V): DC24± 10 %
Rated Current(A): 2
Weight (kg): 1.1
Usage Environment: 0~40℃, < 85%RH ( Without Condensation)
Protection Class IP: IP 40

1.The data is sourced from the actual test results in the 25℃
laboratory.Notes:
2.The drawings provided in this Catalogue are for the default standard
model. If you require other models with different motor directions, outlet
directions, or outlet methods, please contact your local sales
representative to obtain the drawings for the optional models.
