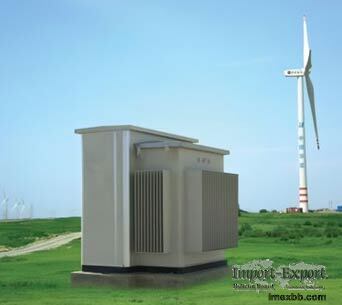

Combined Pad Mounted Substation

The ZBG series America Housing Type Transformer are researched and developed by
our company. Differencing from the traditional housing type transformer
station, the high voltage load switch, fuse and other protection elements are
installed in the pad mounted transformer and using transformer oil as the
insulation and cooling medium, all those are compact in its structure.

The features of pad mounted transformer are compact structure, safe and
reliable operation, safe convenient maintenance, attractive appearance, high
mobility and small size. It can be used as loop network power distribution
system or double-power radiating terminal in the power distribution system.

Benefits of Combined Pad Mounted Substation

Small Volume

Compact structure, small volume, convenient installation, flexible, can be used
for both the ring network, and can be used for the terminal, conversion is very
convenient, improve the reliability of power supply.

High Safety Performance

All insulation, fully sealed structure, safe and reliable, maintenance free,
reliable protection of personal safety, high side adopts double fuse
protection, inserted fuse fuse for unika fuse (temperature, current), backup
fuse current-limiting fuse, reduce the operation cost, high voltage into the
line structure of cable connectors, fully insulated, safe and reliable, easy to
operate.

Good craft

The special process of vacuum drying and vacuum oil filling is adopted. Our
company extends the process used in 110kV products to 10kV products to provide
strong guarantee for improving pad mounted substation's quality.

Good Performance

The transformer is three-phase three-phase three-phase five-column structure,
the iron core adopts ladder joint process or rolled iron core process, low
noise, low loss, short circuit and overload resistance.

Good Environmental Adaptability

The box body can be designed according to the requirements of the operating
environment with anti-corrosion design and special painting treatment, with the
"three prevention" function, that is, anti-condensation, anti-salt fog, anti-
mold function, and can meet the requirements of high temperature, high humidity
environment anti-corrosion.

Applications of Combined Pad Mounted Substation

ZBG series America housing type transformer can be used as radiating terminal
power distribution system with the voltage of 10/0.4KV and the frequency of
50Hz, the rated capacity of the transformers shall be 50KVA to 1600 KVA, which
have been extensively used in the power distribution units of residence
communities, public locations, factories and mines etc.

Combined pad mounted substation can be used as loop network power distribution
system or double-power radiating terminal in power distribution system.

As a leading transformer supplier, we provide transformer products, oil
immersed transformer, oil filled transformer, etc. Contactus to know pad
mounted transformer price list or more.
