Color Doppler Portable Pocket Ultrasound Scanner Application For MSK Breast

Pocket Ultrasound Scanner Portable Color Doppler Application for MSK Breast
Thyroid

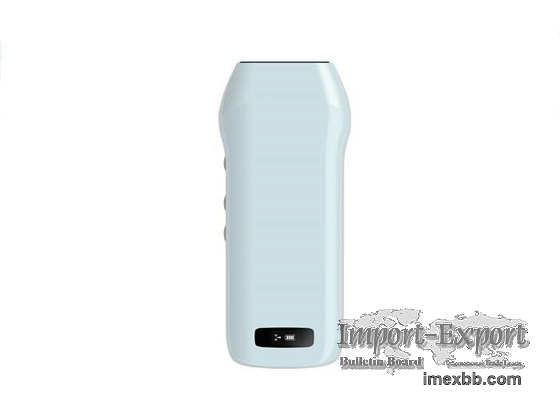

This ultrasonic probe was launched in 2018, the probe body has 3 activation
buttons, scanning frequency is 7.5-10mhz,

192 elements. Color Doppler wireless linear probe, can provide rapid high-
definition ultrasound images for anesthesiologists,

physiotherapists, etc.

Specification

1 Product name Wireless linear probe
2 Elements 192
3 Frequency 7-10MHz
4 Depth 40-100mm
5 Host Tablet, Smart phone, PC
6 Connection WiFi
7 Software Adjustable Parameters GN(gain), D(Depth), ENH(Enhancement),
DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote
8 Measurement
B:

Length, Area/Circumference, Angle, Trace, Distance

B+M:

Heart Rate, Time, Distance

B+PW:

Velocity, Heart Rate(2), S/D, Depth

9 Playback Frames 100, 200, 500, 1000 optional
10 Image Gray Scale 256 level
11 Display Mode B, B/M, PW Doppler, Color Doppler, Power Doppler
12 Image Save jpg, avi, Mp4 and DICOM format
13 WiFi Type Built-in WiFi, 802.11g/20MHz/5G/450Mbps
14 Channel 64
15 Frame 24s/f
16 Gain 40-110Db
17 Language English, Chinese,Russian, German, Italian, Spanish,
Portuguese
18 Power by built-in battery
19 Power Consumption 4W (probe run) /1.5W (probe stop)
20 Battery Replaceable Yes
21 Battery Last 3hours (Working time), 12 hours(Stand by time)
22 Charger wireless charger

Standard Configuration

1 Wireless probe 1pc
2 USB cable 1pc
3 Power Plug 1pc
4 Wireless charger 1pc
5 Wrist strap 1pc
6 Portable aluminium alloy box 1pc

Images

Color Doppler Portable Pocket Ultrasound Scanner Application For MSK Breast
Thyroid 0

Color Doppler Portable Pocket Ultrasound Scanner Application For MSK Breast
Thyroid 1

Service

- After-sale Service

Please provide us with a video to identify the problem.
If you encounter software problems, we will guide you how to solve them, and if
necessary, our professional engineers will upgrade the software.
If you encounter hardware problems, it will be repaired free of charge during
the warranty period.
- Return Policy

It must be ensured that the product is free of any damage and the product is
complete;

secondly, the return shipping and customs clearance costs of the product are
borne by the buyer and

refunded after deducting these costs.

-Warranty Policy

We provide an 18-month warranty period. If there is any quality problem during
the warranty period,

it needs to be sent to our company's address for free repair.
