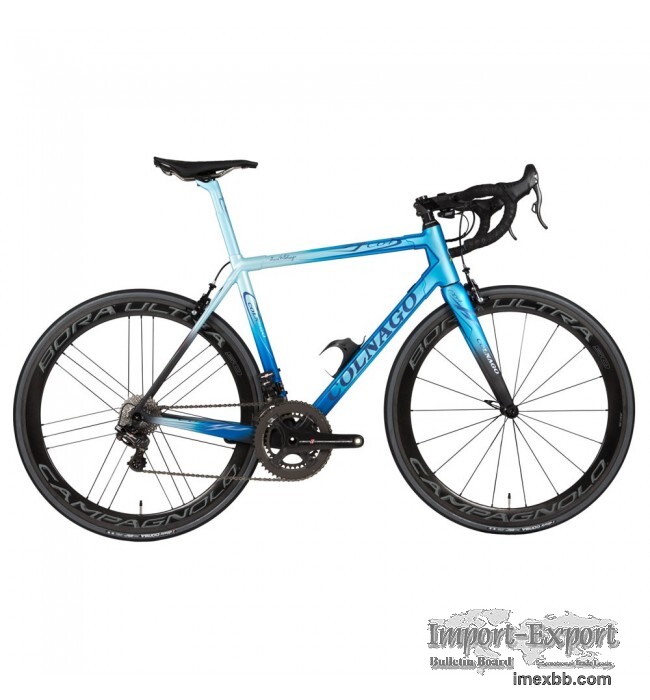

COLNAGO C64 ART DECOR SUPER RECORD EPS ROAD BIKE (SLOPING GEOMETRY)

Renowned for designing and manufacturing framesets of the highest quality,
Colnago has reached their 64th year. To celebrate, they have brought out
the latest in their 'C' range, the C64. This road bike has a stunning art
decor design with a sloping geometry, and has been specced with top-end
Campagnolo Super Record EPS components.

The geometry remains the same as the C60, however, there have been a number
of updates to enhance stiffness, power transfer and comfort. The frame is
constructed from the finest quality carbon fibre, with the 3K weave being
replaced with lighter UD (unidirectional) carbon. The headtube retains the
same overall shape but is thinner and lighter with increased side
stiffness, and Colnago has incorporated the Concept headset with its proven
technology. A revision to the upper cup material improves vibration damping
and subsequently enhances rider comfort.

The downtube is narrower to match the revised rear triangle and the bottle
cage area is recessed, creating two ribs in the middle of the downtube;
maximising aerodynamics while increasing torsional rigidity. The seat tube
and seat tube lug now form a single piece to decrease weight and further
increase the overall stiffness. The C64 has a seat clamp with a co-moulded
alloy bed and a single removable part that tightens from the bottom. This
design offers clean aesthetics and reduces the weight by about 15 grams.
Vertical compliance is also improved thanks to the aerodynamic seatpost.

The classic Colnago ThreadFit 82.5 bottom bracket has been updated to have
the cable guide moulded into the lug to offer improved shifting, while the
asymmetric chainstays enhance power transfer. Complete with Ceramic Speed
bearings you can be sure of top performance that lasts.

The rear triangle has had some dramatic changes. With the dropouts and
chainstays now having a one-piece construction, weight is reduced, vertical
compliance is increased and lateral stiffness is retained so that all your
watts are efficiently transferred to the road.

The carbon fork has a new external rib shape for improved comfort and ride
quality. An internal rib in the steerer tube is both strong and rigid, and
the fork houses the pivots for direct-mount brakes so 28mm tyres can be
fitted. Carbon dropouts replace the alloy versions featured on the C60.

A full carbon handlebar and stem have been designed specifically for the
C64 and the stem features a bottom port to accommodate brake cables.
Rolling on Campagnolo Bora Ultra 50 Clincher Wheels and Vittoria CX
Graphene Tyres, you can be sure of efficient power transfer, rigidity, and
comfort.

Super Record EPS is Campagnolo's top-end electronic groupset and makes for
reliable, smooth shifting at just the touch of a button, while the powerful
braking inspires confidence on the fastest of descents.

FEATURES

Colnago C64 Italia carbon frameset in art decor design

Redesigned carbon fork with an external rib shape and internal rib for
improved comfort and ride quality

UD carbon finish

Extra tyre clearance: 28mm

Campagnolo Super Record EPS Electronic Groupset

Campagnolo Bora Ultra 50 Clincher Wheels and Vittoria CX Graphene Tyres

TECHNICAL SPECIFICATION

FRAME Colnago C64 Art Decor Italia frameset, carbon

FORK Colnago C64 carbon, 1-1/8" to 1-1/4" steerer

HEADSET Colnago, 1-1/8" to 1-1/4"

BOTTOM BRACKET Campagnolo Super Record EPS 86.5 x 41

STEM Colnago C64 carbon

HANDLEBAR Colnago C64 carbon

HANDLEBAR TAPE Colnago Black

FRONT BRAKE Campagnolo Super Record Direct mount

REAR BRAKE Campagnolo Super Record Direct mount

FRONT DERAILLEUR Campagnolo Super Record EPS 11 speed

REAR DERAILLEUR Campagnolo Super Record EPS 11 speed

SHIFT LEVERS Campagnolo Super Record EPS 11 speed

CASSETTE Campagnolo Super Record 12-29

CHAIN Campagnolo Super Record 11 speed

CRANKSET Campagnolo Super Record 11 speed 52 x 36 170,

PEDALS N/A

FRONT WHEEL Campagnolo Bora Ultra 50

REAR WHEEL Campagnolo Bora Ultra 50

FRONT TYRE Vittoria CX Graphene 700c x 25c clincher

REAR TYRE Vittoria CX Graphene 700c x 25c clincher

SADDLE Prologo Scratch 2 CPC

SEATPOST Colnago Carbon, 15mm offset

BOTTLE CAGE Colnago Carbon
