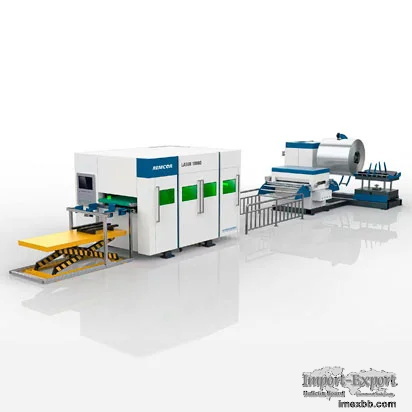

Coil Sheet Laser Cutting Machine

The coil laser cutting machine combines with the de-coiling system, leveling
system and laser cutting system. It's suitable to process the multi shape of
products, can realize customized manufacturing. Compared with traditional coil
processing lines, our sheet metal coil line machine laser cutting system with
features of high precision, high productivity, less cost on labors, and stable
operation. which is suitable for cutting metal coils, such as stainless steel,
carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel,
galvanized steel, copper, etc.

Decoiler,hydraulic lifting, all servo support, and remote control.

Levelling, which is to straighten from coil sheet.

Manufacturing steps: Fiber Laser cutting or Punching Or shearing or folding.

Post-processing, such as robot handling to stack automatically or welding etc.

Coil Fed Laser Cutting Machine Features
Fully-automation can realize to process from the raw metal coils to the final
profiles, no need a numeral labors to handle different devices and a few cycles of
loading and unloading, There is no need to change the dies, and no waste of time
or labors, can realize the higher flexibility manufacturing faster react to the
customer's needs and rapid react to the market changes.

Higher productivity, there is no waste of labor landing and blanking compared with
traditional line. Only one worker can handle the whole lines. It is stable
operation, no need to change the dies, less operation.

High precision and accuracy, the system apply with the servo feeding system and
solid fiber laser technology, which make sure the precision.

Sheet Metal Coil Cutting Machine Parameter Details
Number Item Specification
Laser cutting station
1 Laser source power 1500W
2 Working area 3000mm×1500mm
3 X、Y axis positioning accuracy ±0.05mm/m
4 X、Y axis repositioning accuracy ±0.03mm
5 Max running speed 120m/min
6 Max acceleration 1.2G
7 Workbench maximum load weight 800kg
8 Station weight 6.5T
9 Station size（length*width*height） 6m×2.92m×2.0mm
De-coiling station
10 De-coiling width/capacity 300-1250mm/10T
11 Decoil landing capacity 10T
Levelling station
14 Levelling rollers Up 5/down 4
15 Output speed 16m/min

If you are looking for a reliable precision laser cutter factory, please choose
us, and we will be your best partner.

Minimum Order: 3000 sets
